IDI Diamond Coated 4-Flute Square End Mill - 2mm

Name: IDI Diamond Coated 4-Flute Square End Mill - 2mm
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-976bb3
Price: 79.99 USD
Availability: OutOfStock

SKU:DIA-976bb3

Get superior cutting performance and extended tool life with the IDI Diamond Coated 4-Flute Square End Mill - 2mm. Ideal for graphite milling and composite materials.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience top cutting performance and exceptional tool life with the IDI Diamond Coated 4-Flute Square End Mill. Specially sintered substrate, high-performance tool geometry, and superior diamond coating deliver a tool lifetime 12-20 times longer than uncoated tools. Rigorously checked with precise equipment for impeccable quality. Ideal for graphite milling, composite materials, and ceramics in green state machining. Enhance your machining precision and efficiency with this advanced end mill.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

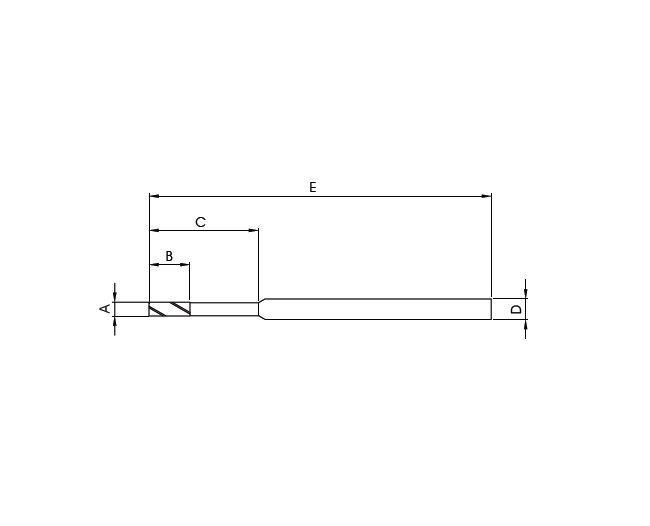

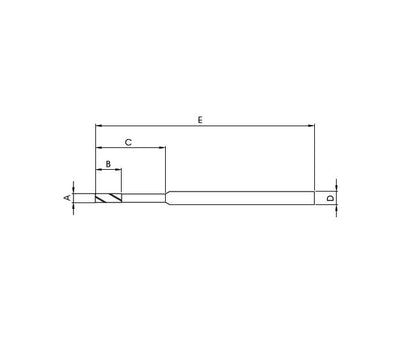

Specifications Cutting Diameter A

2 mm

Specifications Flute Length B

6 mm

Specifications Number Of Flute

Specifications Overall Length E

50 mm

Specifications Reach C

20 mm

Specifications Shank Diameter D

3 mm
