IDI Diamond Coated 4-Flute Square End Mill - 4mm

IDI Diamond Coated 4-Flute Square End Mill - 4mm

DIA-2449cd

Maximize cutting performance and longevity with the IDI Diamond Coated 4-Flute Square End Mill - ideal for graphite milling & composite materials. Precision-engineered for durability.

$79.99
$79.99
Sale

Initiate Order

IDI Diamond Coated 4-Flute Square End Mill - 4mm

IDI Diamond Coated 4-Flute Square End Mill - 4mm

$79.99

Quantity: 1

Claim Your Seller Account

IDI Diamond Coated 4-Flute Square End Mill - 4mm

IDI Diamond Coated 4-Flute Square End Mill - 4mm

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Experience unparalleled cutting performance and extended tool life with the IDI Diamond Coated 4-Flute Square End Mill. Crafted with a specially sintered substrate, advanced tool geometry, and superior diamond coating, this tool surpasses uncoated ones by lasting 12-20 times longer. Precision-controlled using state-of-the-art equipment like the Zoller Measuring Machine and Mitutoyo Laser Scan Meter, each tool undergoes meticulous inspection to ensure perfection. Ideal for graphite milling in the semiconductor and die mold industries, as well as machining composite materials like CFRP and ceramics, this end mill delivers quality and longevity for demanding applications.

Product Specifications

Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

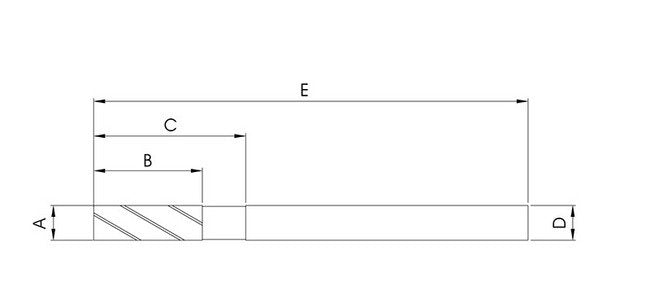

Specifications Cutting Diameter A
4 mm
Specifications Flute Length B
15 mm
Specifications Number Of Flute
4
Specifications Overall Length E
100 mm
Specifications Reach C
20 mm
Specifications Shank Diameter D
4 mm
