IDI Diamond Coated 4-Flute Square End Mill
IDI Diamond Coated 4-Flute Square End Mill
SKU:DIA-8f5d3b
Achieve superior cutting performance with IDI Diamond Coated 4-Flute Square End Mill. Perfect for graphite milling and composite materials.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
IDI Diamond Coated 4-Flute Square End Mill
$39.99
Quantity: 1
Claim Your Seller Account
IDI Diamond Coated 4-Flute Square End Mill
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience top cutting performance and exceptional durability with the IDI Diamond Coated 4-Flute Square End Mill. This tool boasts a specially sintered substrate, high-performance geometry, and a superior diamond coating, offering a tool life up to 20 times longer than uncoated options. Precision-controlled with Zoller Measuring Machine and Mitutoyo Laser Scan Meter, each end mill undergoes rigorous quality checks to ensure perfection. Ideal for graphite milling in the semiconductor and die mold industries, as well as machining composite materials like CFRP and ceramics. Elevate your cutting operations with this reliable and long-lasting end mill.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

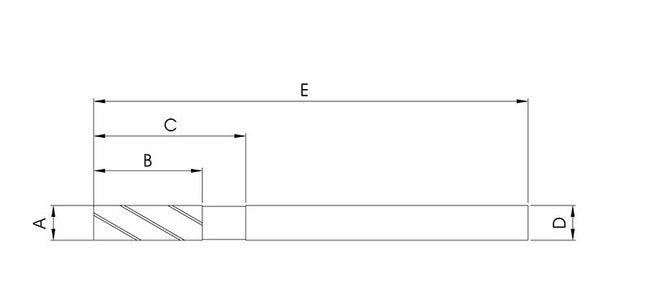

Specifications Cutting Diameter A
3 mm
Specifications Flute Length B
9 mm
Specifications Number Of Flute
4
Specifications Overall Length E
75 mm
Specifications Reach C
15 mm
Specifications Shank Diameter D
3 mm
