IDI Diamond Coated 4-Flute Square End Mill - 6mm

Name: IDI Diamond Coated 4-Flute Square End Mill - 6mm
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-050053
Price: 79.99 USD
Availability: OutOfStock

SKU:DIA-050053

Enhance machining efficiency with the IDI Diamond Coated 4-Flute Square End Mill - designed for precision cutting and extended tool life.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your machining operations with the IDI Diamond Coated 4-Flute Square End Mill. This high-performance tool features a specially sintered substrate and diamond coating for exceptional cutting performance and extended tool life. Utilizing advanced equipment for precision control, each tool undergoes rigorous inspection to ensure perfection. Ideal for graphite milling in the semiconductor and die mold industries, as well as machining composite materials like CFRP and ceramics, this end mill guarantees superior results and durability.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

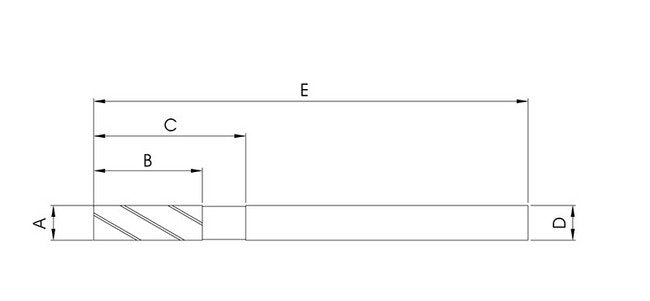

Specifications Cutting Diameter A

6 mm

Specifications Flute Length B

20 mm

Specifications Number Of Flute

Specifications Overall Length E

60 mm

Specifications Reach C

25 mm

Specifications Shank Diameter D

6 mm
