IDI Diamond Coated 4-Flute Square End Mill - 6mm

IDI Diamond Coated 4-Flute Square End Mill - 6mm

DIA-40b560

Experience top cutting performance and long tool life with the IDI Diamond Coated 4-Flute Square End Mill - perfect for graphite milling & composite material machining.

$49.99
$49.99
Sale

Initiate Order

IDI Diamond Coated 4-Flute Square End Mill - 6mm

IDI Diamond Coated 4-Flute Square End Mill - 6mm

$49.99

Quantity: 1

Claim Your Seller Account

IDI Diamond Coated 4-Flute Square End Mill - 6mm

IDI Diamond Coated 4-Flute Square End Mill - 6mm

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The IDI Diamond Coated 4-Flute Square End Mill delivers unparalleled cutting performance and exceptional tool longevity, exceeding that of uncoated tools by 12-20 times. Crafted with a specially sintered substrate, advanced tool geometry, and superior diamond coating, this end mill undergoes rigorous quality control using Zoller and Mitutoyo precision equipment. Ideal for graphite milling in the semiconductor and die & mold industries, as well as machining composite materials like CFRP, glass fiber plastics, and ceramics, this tool ensures precise results in green state machining. Maximize tool life with optimal cutting conditions and experience next-level performance with every use.

Product Specifications

Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

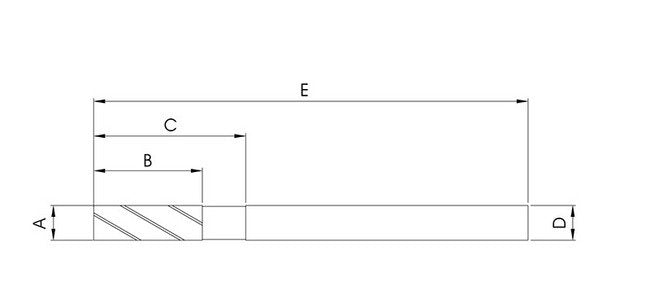

Specifications Cutting Diameter A
6 mm
Specifications Flute Length B
20 mm
Specifications Number Of Flute
4
Specifications Overall Length E
100 mm
Specifications Reach C
25 mm
Specifications Shank Diameter D
6 mm
