IDI Diamond Coated 4-Flute Square End Mill
IDI Diamond Coated 4-Flute Square End Mill
SKU:DIA-6b71ec
Achieve unparalleled cutting performance and durability with IDI Diamond Coated 4-Flute Square End Mill. Ideal for graphite and composite materials.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
IDI Diamond Coated 4-Flute Square End Mill
$59.99
Quantity: 1
Claim Your Seller Account
IDI Diamond Coated 4-Flute Square End Mill
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unrivaled cutting performance and exceptional tool longevity with the IDI Diamond Coated 4-Flute Square End Mill. Featuring a specially sintered substrate, high-performance tool geometry, and superior diamond coating, this end mill surpasses uncoated alternatives with a lifespan exceeding 12-20 times. Each tool undergoes rigorous quality control using advanced equipment like Zoller Measuring Machine and Mitutoyo Laser Scan Meter. Ideal for graphite milling in semiconductor and die and mold industries, as well as composite materials like CFRP and ceramics. Maximize efficiency and precision with this premium end mill.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

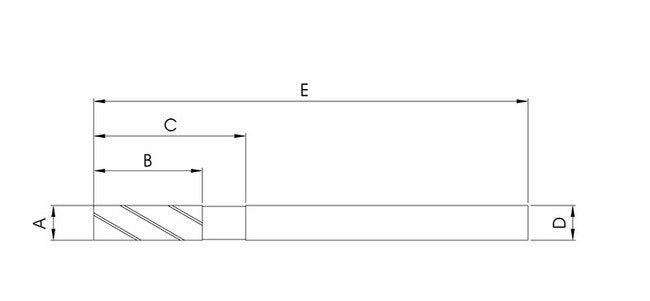

Specifications Cutting Diameter A
6 mm
Specifications Flute Length B
20 mm
Specifications Number Of Flute
4
Specifications Overall Length E
150 mm
Specifications Reach C
25 mm
Specifications Shank Diameter D
6 mm
