IDI Diamond Coated 4-Flute Square End Mill 8mm
IDI Diamond Coated 4-Flute Square End Mill 8mm
SKU:DIA-541d34
Unmatched cutting performance & durability with IDI Diamond Coated 4-Flute Square End Mill. Perfect for graphite milling & machining composite materials.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
IDI Diamond Coated 4-Flute Square End Mill 8mm
$39.99
Quantity: 1
Claim Your Seller Account
IDI Diamond Coated 4-Flute Square End Mill 8mm
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unmatched cutting performance and exceptional tool longevity with the IDI Diamond Coated 4-Flute Square End Mill. Engineered with a specially sintered substrate, high-performance tool geometry, and superior diamond coating, this end mill surpasses uncoated tools with a lifespan 12-20 times longer. Rigorously checked with Zoller Measuring Machine and Mitutoyo Laser Scan Meter for precise control, ensuring each tool meets perfection standards. Ideal for graphite milling in the semiconductor and die & mold industries, as well as machining composite materials like CFRP, glass fiber plastics, PEEK, and PBI.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

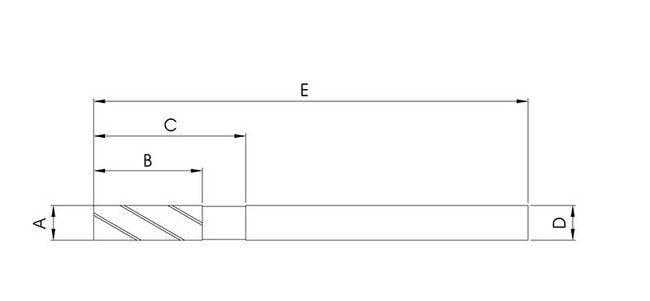

Specifications Cutting Diameter A
8 mm
Specifications Flute Length B
25 mm
Specifications Number Of Flute
4
Specifications Overall Length E
100 mm
Specifications Reach C
35 mm
Specifications Shank Diameter D
8 mm
