Enhance your machining efficiency with the IDI Diamond Coated 4-Flute Square End Mill. Engineered for top cutting performance and exceptional tool longevity, this end mill features a specially sintered substrate, high-performance tool geometry, and a premium diamond coating. With a lifespan surpassing uncoated tools by 12-20 times, each tool undergoes rigorous quality control utilizing advanced equipment like a Zoller Measuring Machine and Mitutoyo Laser Scan Meter. Perfect your precision with this tool designed for graphite milling, composite materials, and ceramics machining.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

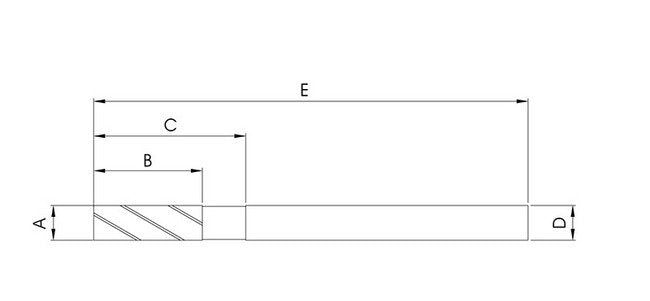

Specifications Cutting Diameter A
8 mm
Specifications Flute Length B
25 mm
Specifications Number Of Flute
4
Specifications Overall Length E
150 mm
Specifications Reach C
35 mm
Specifications Shank Diameter D
8 mm
