IFC Series 1/8in Female Cross Fitting - NPT Threads

Name: IFC Series 1/8in Female Cross Fitting - NPT Threads
Brand: Superlok-Mako Products LLC
SKU: IFC-14e189
Price: 24.99 USD
Availability: OutOfStock

SKU:IFC-14e189

High-quality IFC Series Female Cross Fitting - NPT Threads for reliable pipe connections.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

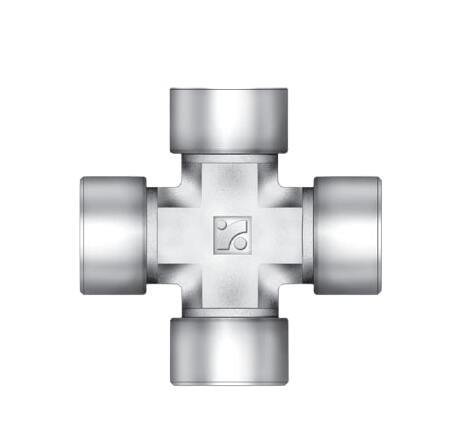

The IFC Series 1/8 Inch (in) Pipe Size Female Cross Fitting is a versatile and durable solution for connecting pipes in various configurations. Crafted from high-quality 316 Stainless Steel, Brass, or Carbon Steel, this fitting ensures reliable performance and longevity. With Male NPT Threads, it offers easy installation and a secure connection. Designed with precise dimensions and sturdy materials, this fitting meets industry standards for quality and durability. Ideal for both consumer and institutional applications, it provides a dependable solution for your piping needs.

Product Specifications

Note Note

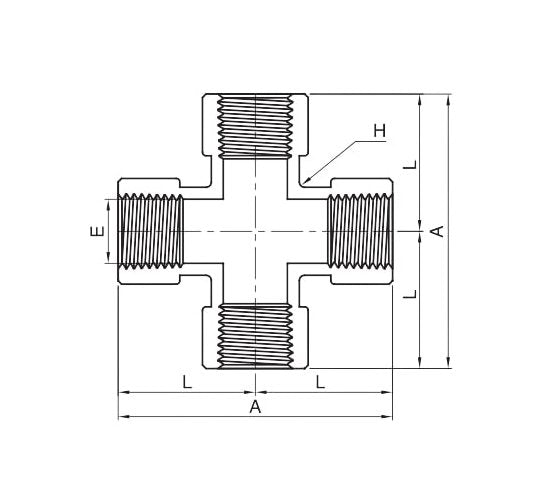

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.

Technical Specs Dimension A

48.0 mm

Technical Specs Dimension E

8.6 mm

Technical Specs Dimension H

12.7 mm

Technical Specs Dimension L

24.0 mm

Technical Specs Material

316 Stainless Steel | Brass | Carbon Steel

Technical Specs Pipe Size

1/8 in

Technical Specs Thread Type

National Pipe Thread (NPT)

IFC Series 1/8in Female Cross Fitting - NPT Threads
