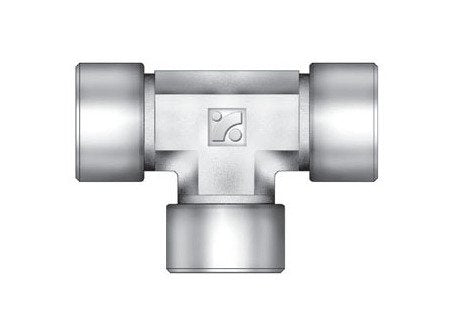

IFT Series 1 Inch Female Tee Fitting
IFT Series 1 Inch Female Tee Fitting
SKU:IFT-045434
High-quality 1-inch Female Tee Fitting with NPT threads, ideal for secure and leak-free connections. Meets institutional procurement standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
IFT Series 1 Inch Female Tee Fitting
$24.99
Quantity: 1
Claim Your Seller Account
IFT Series 1 Inch Female Tee Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IFT Series 1 Inch Female Tee Fitting features female NPT threads and is crafted from high-quality materials including 316 stainless steel, brass, and carbon steel. With precise dimensions and National Pipe Thread (NPT) compatibility, this fitting ensures a secure and leak-free connection. Its durable construction and versatile design make it ideal for a wide range of applications, meeting the stringent requirements of institutional and government procurement standards.
Product Specifications
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.

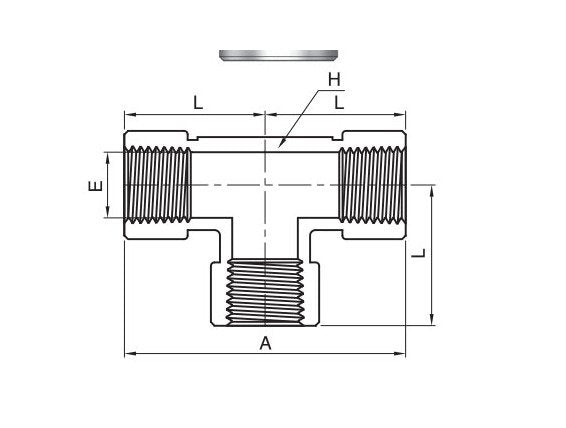

Technical Specs Connection Type
Female
Technical Specs Dimension A
97.0 mm
Technical Specs Dimension E
29.7 mm
Technical Specs Dimension H
42.9 mm
Technical Specs Dimension L
48.5 mm
Technical Specs Material
316 Stainless Steel | Brass | Carbon Steel
Technical Specs Pipe Size
1 in
Technical Specs Thread Type
National Pipe Thread (NPT)
