iGaging 25-363-3 Dial Bore Gage Set
iGaging 25-363-3 Dial Bore Gage Set
SKU:BOR-733e12
Accurate and versatile bore gage set with 3 interchangeable heads, high precision, and durable alloy steel construction.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
iGaging 25-363-3 Dial Bore Gage Set
$289.99
Quantity: 1
Claim Your Seller Account
iGaging 25-363-3 Dial Bore Gage Set
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

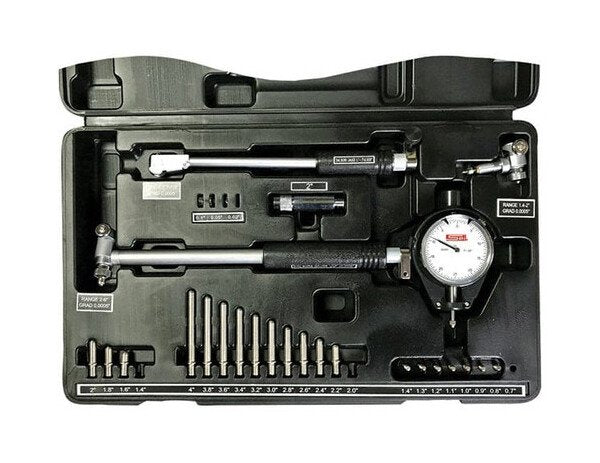

The iGaging 25-363-3 Dial Bore Gage Set is a precision measuring tool designed for accurate bore diameter measurements in the range of 0.7 to 6 inches. This kit includes 3 interchangeable measuring heads and sets of anvils with carbide contact points, offering high versatility. With an accuracy of 0.0003 inches and a resolution of 0.0005 inches, this alloy steel gage ensures precise results. Ideal for industrial applications, this gage set comes in a fitted case and includes a two-year warranty.
Product Specifications
Includes Includes
Bore Gage Set
Set Includes Set Includes
3 Interchangeable measuring heads:0.7 - 1.4"1.4 - 2"2 - 6"3 Sets of anvils with carbide contact points:0.7, 0.8, 0.9, 1.0, 1.1, 1.2, 1.3, 1.4"1.4, 1.6, 1.8, 2"2.0, 2.2, 2.4, 2.6, 2.8, 3.0, 3.2, 3.4, 3.6, 3.8, 4"2" extender3 spacers/washers: 0.02, 0.05, 0.1"Travel IndicatorRange: 0 - 0.25"Accuracy: 0.0003"Resolution: 0.0005"Reading: 0-25-00.7 - 6" bore gage, accuracy 0.001"Furnished in fitted case2 year warranty
Technical Specs 3 Interchangeable Measuring Heads
0.7 to 1.4 in | 1.4 to 2 in | 2 to 6 in
Technical Specs 3 Sets Of Anvils With Carbide Contact Points
0.7, 0.8, 0.9, 1.0, 1.1, 1.2, 1.3, 1.4 in | 1.4, 1.6, 1.8, 2 in | 2.0, 2.2, 2.4, 2.6, 2.8, 3.0, 3.2, 3.4, 3.6, 3.8, 4 in
Technical Specs 3 Spacerswashers
0.02 in | 0.05 in | 0.1 in
Technical Specs Accuracy
0.0003 in | 0.0006 in
Technical Specs Brands
iGaging
Technical Specs Dial Face Color
White
Technical Specs Gage Depth
10 in
Technical Specs Graduation
0.0005 in
Technical Specs Includes Indicator
Yes
Technical Specs Material
Alloy Steel (Anvil)
Technical Specs Maximum Measurement
6 in
Technical Specs Measuring Range
0.7 to 6 in
Technical Specs Minimum Measurement
0.7 in
Technical Specs Number Of Anvilsrods
23
Technical Specs Plunger Travel
4.3 in
Technical Specs Range
0 to 0.25 in
Technical Specs Resolution
0.0005 in | 0.0005 mm
Technical Specs Style
Dial Bore Gage
Technical Specs Type
Dial Bore Gage
