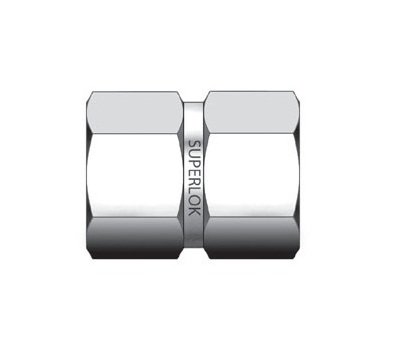

IHC Series 3/8 Inch Hex Coupling - NPT Threads, 316 Stainless Steel

Name: IHC Series 3/8 Inch Hex Coupling - NPT Threads, 316 Stainless Steel
Brand: Superlok-Mako Products LLC
SKU: IHC-502dc4
Price: 24.99 USD
Availability: OutOfStock

SKU:IHC-502dc4

Premium 3/8 Inch Hex Coupling - NPT Threads, 316 Stainless Steel, Durable & Reliable

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

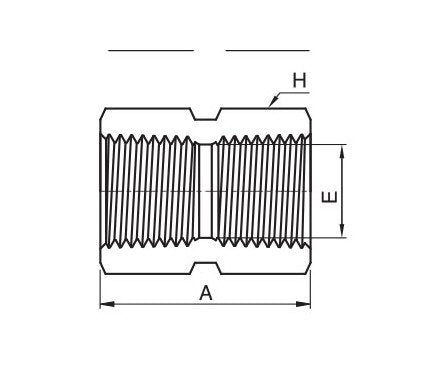

The IHC Series 3/8 Inch Hex Coupling features female NPT threads and is constructed from durable 316 stainless steel, providing superior corrosion resistance and longevity. With precise dimensions of 33.3mm (A), 15.0mm (E), and 22.2mm (H), this coupling ensures a secure and leak-free connection. Meeting stringent industry standards, this coupling is ideal for various applications, offering reliability and performance in demanding environments.

Product Specifications

Note Note

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.

Technical Specs Dimension A

33.3 mm

Technical Specs Dimension E

15.0 mm

Technical Specs Dimension H

22.2 mm

Technical Specs Material

316 Stainless Steel | Brass | Carbon Steel

Technical Specs Pipe Size

3/8 in

Technical Specs Thread Type

National Pipe Thread (NPT)

IHC Series 3/8 Inch Hex Coupling - NPT Threads, 316 Stainless Steel
