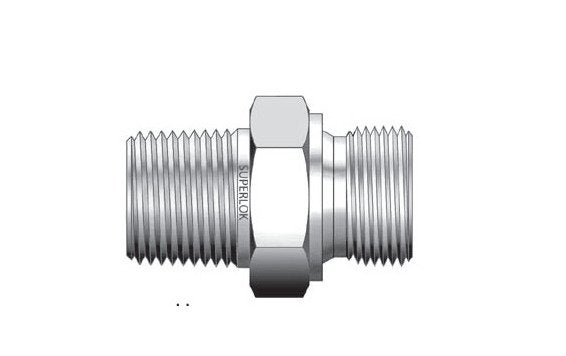

IHN Series 1/4in Hex Nipple Fitting, Male NPT to Male ISO Parallel Threads
IHN Series 1/4in Hex Nipple Fitting, Male NPT to Male ISO Parallel Threads
SKU:IHN-6bbe33
High-quality 1/4in Hex Nipple Fitting for secure and leak-free piping connections.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
IHN Series 1/4in Hex Nipple Fitting, Male NPT to Male ISO Parallel Threads
$14.99
Quantity: 1
Claim Your Seller Account
IHN Series 1/4in Hex Nipple Fitting, Male NPT to Male ISO Parallel Threads
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IHN Series 1/4in Hex Nipple Fitting is a versatile component designed for seamless connection in piping systems. Crafted from high-quality 316 Stainless Steel, Brass, or Carbon Steel, this fitting ensures durability and corrosion resistance. With precise dimensions meeting industry standards (36.8 mm Dimension A, 5.8 mm Dimension E, 19.1 mm Dimension H), and compatibility with British Standard Pipe (BSP), International Organization for Standardization (ISO), and National Pipe Thread (NPT), this fitting offers reliability and ease of installation. Whether for commercial, industrial, or government applications, this fitting guarantees a secure and leak-free connection.
Product Specifications
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

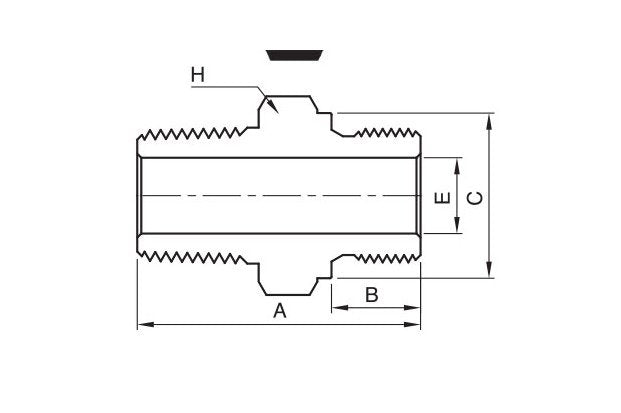

Technical Specs Dimension A
36.8 mm
Technical Specs Dimension B
12 mm
Technical Specs Dimension C
18.0 mm
Technical Specs Dimension E
5.8 mm
Technical Specs Dimension H
19.1 mm
Technical Specs Material
316 Stainless Steel | Brass | Carbon Steel
Technical Specs Pipe Size International Organization For Standar
1/4 in
Technical Specs Pipe Size National Pipe Thread Npt
1/4 in
Technical Specs Thread Type
British Standard Pipe (BSP) | International Organization for Standardization (ISO) | National Pipe Thread (NPT)
