IHN Series 1" Hex Nipple Fitting - NPT | ISO | BSP Thread, 316 Stainless Steel
IHN Series 1" Hex Nipple Fitting - NPT | ISO | BSP Thread, 316 Stainless Steel
SKU:IHN-71004d
Versatile 1" Hex Nipple Fitting for NPT, ISO, BSP Threads in 316 Stainless Steel. Durable & precise for reliable connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
IHN Series 1" Hex Nipple Fitting - NPT | ISO | BSP Thread, 316 Stainless Steel
$29.99
Quantity: 1
Claim Your Seller Account
IHN Series 1" Hex Nipple Fitting - NPT | ISO | BSP Thread, 316 Stainless Steel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

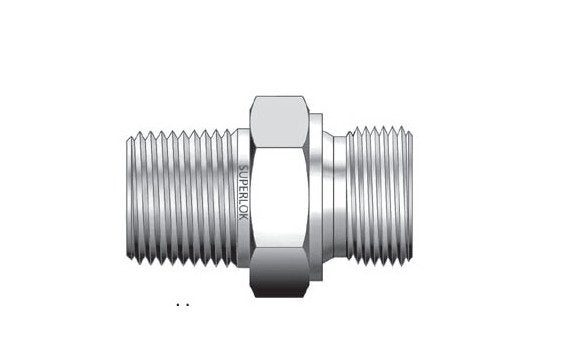

The IHN Series 1 Inch Pipe Size Hex Nipple Fitting features male NPT to male ISO parallel pipe threads, designed for reliable and secure connections. Crafted from high-quality 316 Stainless Steel, Brass, or Carbon Steel, this fitting ensures durability and resistance to corrosion. With precise dimensions and multi-thread compatibility including British Standard Pipe (BSP), International Organization for Standardization (ISO), and National Pipe Thread (NPT), it offers versatility for various applications. Meet your institutional procurement needs with this compliant and adaptable pipe fitting that guarantees exceptional performance.
Product Specifications
Note Note

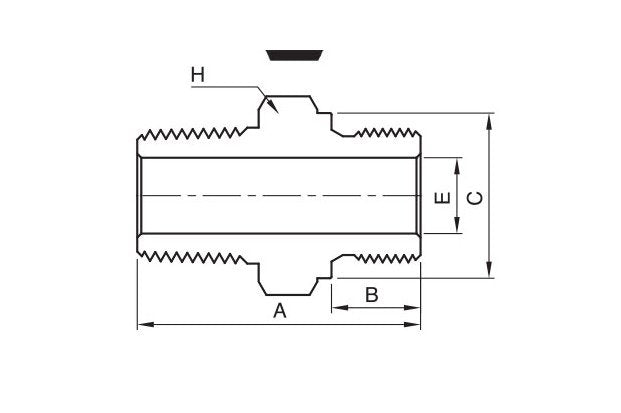

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
56.6 mm
Technical Specs Dimension B
18 mm
Technical Specs Dimension C
38.9 mm
Technical Specs Dimension E
19.8 mm
Technical Specs Dimension H
41.2 mm
Technical Specs Material
316 Stainless Steel | Brass | Carbon Steel
Technical Specs Pipe Size International Organization For Standar
1 in
Technical Specs Pipe Size National Pipe Thread Npt
1 in
Technical Specs Thread Type
British Standard Pipe (BSP) | International Organization for Standardization (ISO) | National Pipe Thread (NPT)
