IHRN Series Hex Reducing Nipple Fitting - 3/8" to 1/8"
IHRN Series Hex Reducing Nipple Fitting - 3/8" to 1/8"
SKU:IHR-3a28d6
Premium IHRN Series Hex Reducing Nipple Fitting, 3/8" to 1/8", male NPT threads, for industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
IHRN Series Hex Reducing Nipple Fitting - 3/8" to 1/8"
$24.99
Quantity: 1
Claim Your Seller Account
IHRN Series Hex Reducing Nipple Fitting - 3/8" to 1/8"
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

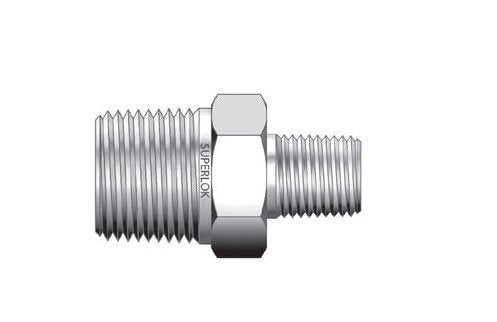

The IHRN Series Hex Reducing Nipple Fitting is precision-engineered to meet the demanding needs of industrial applications. With a pipe size of 3/8 inch to 1/8 inch reduced size, this fitting ensures a secure and leak-free connection. Crafted from high-quality materials including 316 stainless steel, brass, or carbon steel, it offers exceptional durability and resistance to corrosion. The male NPT threads provide a reliable interface for seamless installation. Designed with dimensions that adhere to industry standards, this fitting guarantees optimal performance and reliability in diverse piping systems.
Product Specifications
Note Note

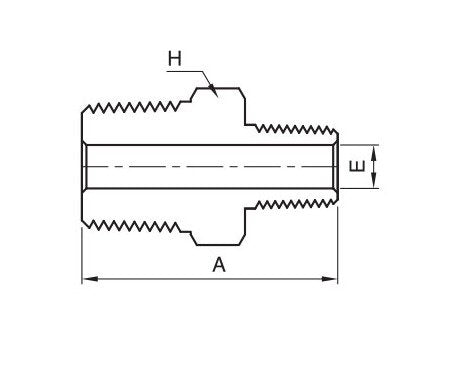

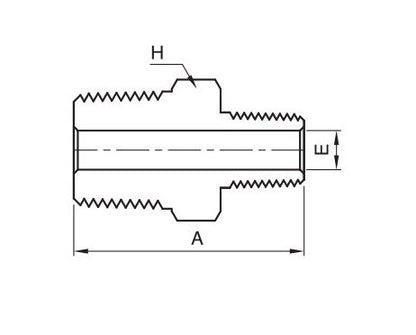

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Dimension A
31.8 mm
Technical Specs Dimension E
4.8 mm
Technical Specs Dimension H
17.4 mm
Technical Specs Material
316 Stainless Steel | Brass | Carbon Steel
Technical Specs Pipe Size
3/8 in
Technical Specs Reduced Pipe Size
1/8
Technical Specs Thread Type
National Pipe Thread (NPT)
