Imperial Rivet Nut - Semi-Hexagon Flat Head 1/4-20 Thread

Name: Imperial Rivet Nut - Semi-Hexagon Flat Head 1/4-20 Thread
Brand: Ornit USA
SKU: KSE-232df0
Price: 12.99 USD
Availability: OutOfStock

SKU:KSE-232df0

High-quality K-Series 0.685 Inch Imperial Rivet Nut with 1/4-20 Thread, ideal for secure and durable fastening applications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

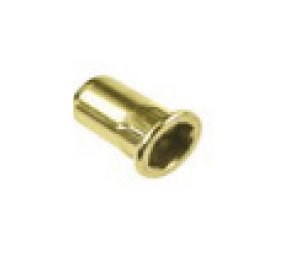

The K-Series 0.685 Inch Imperial Rivet Nut features a 1/4-20 Thread Size and a durable steel construction with a Yellow Zinc Plated finish. Its Semi-Hexagon Flat Head design ensures secure fastening, with a Grip Range of 0.165 to 0.260 inches. This rivet nut is versatile and compatible with various materials, offering reliability and strength for a wide range of applications. Available in Stainless Steel & Aluminum variants.

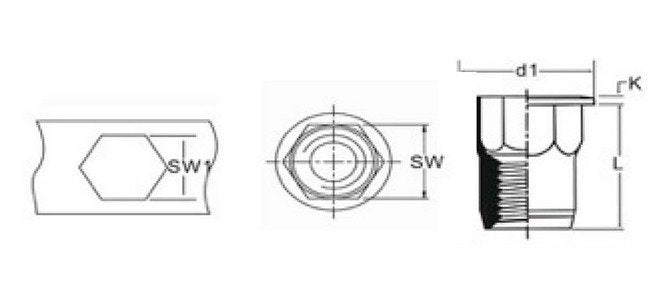

Product Specifications

Dimensions Dimension D1

0.510 in

Dimensions Dimension K

0.030 in

Dimensions Dimension L

0.685 in

Dimensions Dimension Sw

0.374 in

Dimensions Dimension Sw1

0.375 in

Dimensions Maximum Grip Range

0.260 in

Dimensions Minimum Grip Range

0.165 in

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Semi-Hexagon Flat Head (AH)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

1/4-20
