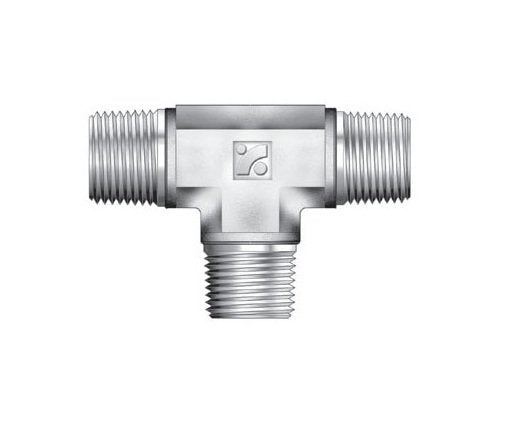

IMT Series 1/8 Inch Male Tee Fitting, NPT Threads
IMT Series 1/8 Inch Male Tee Fitting, NPT Threads
SKU:IMT-d4d7c6
High-quality IMT Series 1/8 Inch Male Tee Fitting with NPT Threads for durable and leak-free connections.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
IMT Series 1/8 Inch Male Tee Fitting, NPT Threads
$12.99
Quantity: 1
Claim Your Seller Account
IMT Series 1/8 Inch Male Tee Fitting, NPT Threads
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IMT Series 1/8 Inch Male Tee Fitting is precision-engineered for durability and optimal performance. Featuring National Pipe Thread (NPT) Threads, this fitting is constructed from high-grade 316 Stainless Steel for superior corrosion resistance. With dimensions meeting industry standards and rigorous quality control, it ensures a secure and leak-free connection. Ideal for a wide range of applications, this fitting guarantees reliability and longevity in any setup.
Product Specifications
Note Note

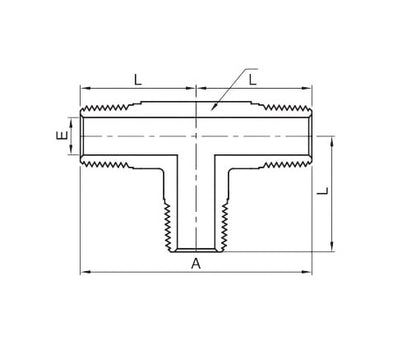

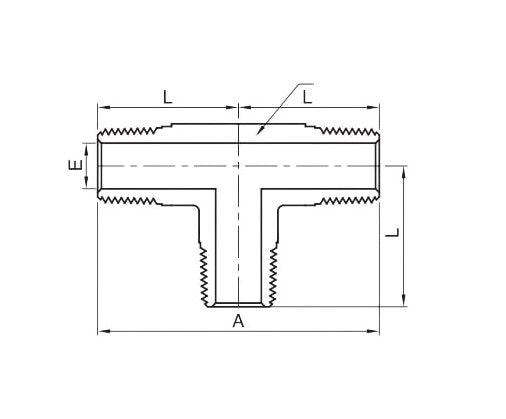

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Dimension A
38.2 mm
Technical Specs Dimension E
4.8 mm
Technical Specs Dimension H
12.7 mm
Technical Specs Dimension L
19.1 mm
Technical Specs Material
316 Stainless Steel | Brass | Carbon Steel
Technical Specs Pipe Size
1/8 in
Technical Specs Thread Type
National Pipe Thread (NPT)
