IMT Series 3/8 Inch Pipe Size Male Tee Fitting with NPT Threads
IMT Series 3/8 Inch Pipe Size Male Tee Fitting with NPT Threads
SKU:IMT-d1602d
High-quality IMT Series 3/8 Inch Male Tee Fitting with Male NPT Threads for secure connections in plumbing applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
IMT Series 3/8 Inch Pipe Size Male Tee Fitting with NPT Threads
$24.99
Quantity: 1
Claim Your Seller Account
IMT Series 3/8 Inch Pipe Size Male Tee Fitting with NPT Threads
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

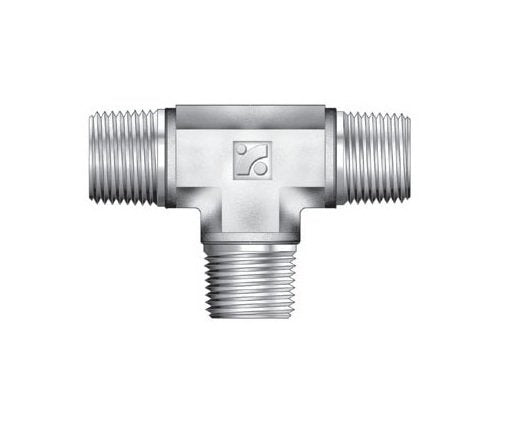

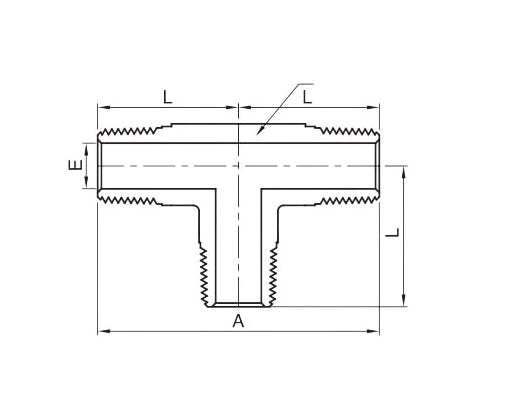

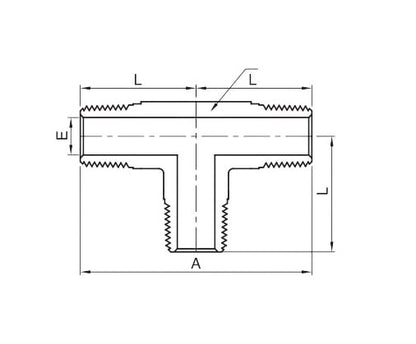

The IMT Series 3/8 Inch Pipe Size Male Tee Fitting is a versatile plumbing component designed for precision and durability. With Male NPT Threads, this fitting ensures secure and leak-free connections. Crafted from high-quality 316 Stainless Steel, Brass, or Carbon Steel, it meets rigorous industry standards for performance and longevity. The dimensions of 53.8mm (A), 9.6mm (E), 26.9mm (L), and 17.5mm (H) cater to a range of applications. Whether for consumer use or government procurement, this tee fitting guarantees reliability and compliance.
Product Specifications
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Dimension A
53.8 mm
Technical Specs Dimension E
9.6 mm
Technical Specs Dimension H
17.5 mm
Technical Specs Dimension L
26.9 mm
Technical Specs Material
316 Stainless Steel | Brass | Carbon Steel
Technical Specs Pipe Size
3/8 in
Technical Specs Thread Type
National Pipe Thread (NPT)
