In-Ground DC 24V Swing Gate Operator

In-Ground DC 24V Swing Gate Operator

LIG-d6dabc

Enhance security with the In-Ground DC 24V Swing Gate Operator - quiet, durable, and compliant with UL 325 standards.

$899.99
$899.99
Sale

Initiate Order

In-Ground DC 24V Swing Gate Operator

In-Ground DC 24V Swing Gate Operator

$899.99

Quantity: 1

Claim Your Seller Account

In-Ground DC 24V Swing Gate Operator

In-Ground DC 24V Swing Gate Operator

$899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

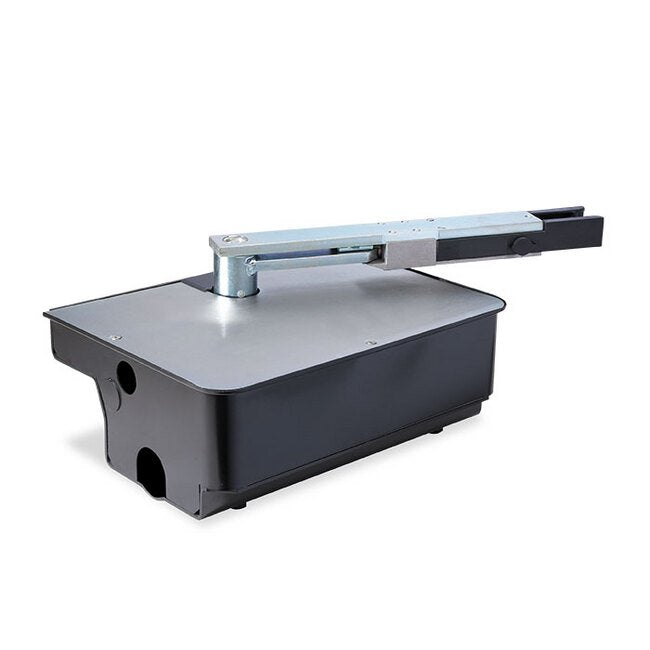

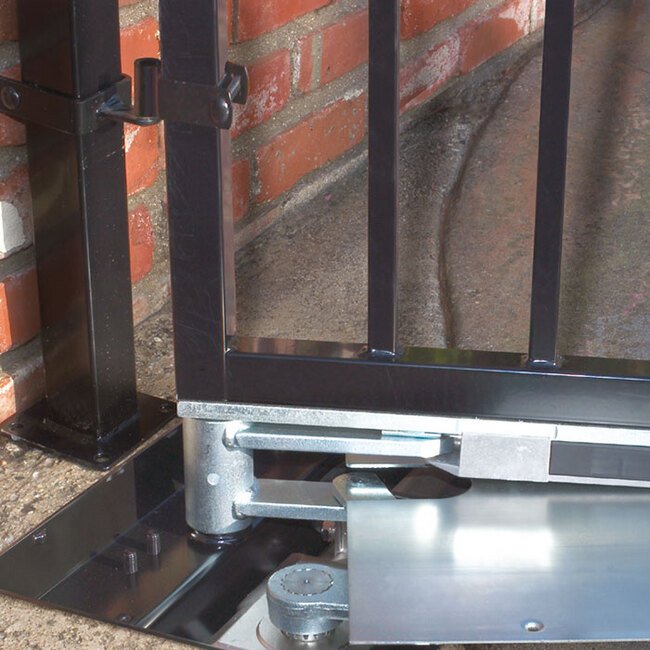

Enhance the security of your property with the In-Ground DC 24V Swing Gate Operator. This Gate Actuator is designed for light-duty swing gates with a maximum length of 8 ft and a weight capacity of 300 lbs. It operates quietly and efficiently, featuring adjustable built-in limit switches for smooth operation. With magnetic limit switches, keyed manual release, and overlap feature for bi-parting operation, this gate operator ensures reliable access control. Compliant with UL 325, ETL Listed, and built from die-cast aluminum for durability, this system also offers solar compatibility for eco-friendly power solutions.

Product Specifications

Additional Information Additional Information
With options for single or bi-parting gates, our Gate Operators are made to withstand the elements and deliver dependable access control, all while maintaining the aesthetic of your gate.
Applications Applications
Residential
Dimensions Height
6 in
Dimensions Length
12 in
Dimensions Width
17 in
Key Features Key Features
Internal adjustable limit switches.Slow start / slow stop.Overlap feature for dual swing gate operation.Magnetic lock output.Ports for plug-in loop detectors.115 VAC or 24 VDC Solar powered control box options.Separate control panel.Keyed release for manual operation.
Note Note
Solar Powered Control Box option
Options Options
Bi-parting gate connection cable.Magnetic gate lock.Plug-in loop detectors.Surge suppressors.Solar power.
Specifications 90 Degree Opening Time
15 s
Specifications Alternating Current Ac Voltage
115 V
Specifications Class Of Operation
Class I
Specifications Convenience Outlets
No
Specifications Direct Current Dc Voltage
24 V
Specifications Gate Tracker Data Output
No
Specifications Limited Factory Warranty
2 y
Specifications Limit Switches
Magnetic
Specifications Manual Release
Keyed
Specifications Maximum Gate Length
8 ft
Specifications Maximum Gate Weight
300 lb
Specifications Motordrive Material
Die-Cast Aluminum with a special corrosion-proof treatment
Specifications Motor Type
Direct Current (DC) Motor
Specifications Mounting Type
In-Ground
Specifications Operating Temperature
0 to 46 ºC | 32 to 115 ºF
Specifications Overlap Feature For Bi Parting Operation
Yes
Specifications Ports For Plug In Loop Detectors
Yes
Specifications Slow Start Slow Stop Operation Type
Adjustable built in limit switches precisely control the start / stop speed, and travel of gate for smooth operation
Specifications Solar Compatible
Yes
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 325 and 991 | Edison Testing Laboratories (ETL) Listed
Specifications Usage
Residential
Technical Specifications Technical Specifications

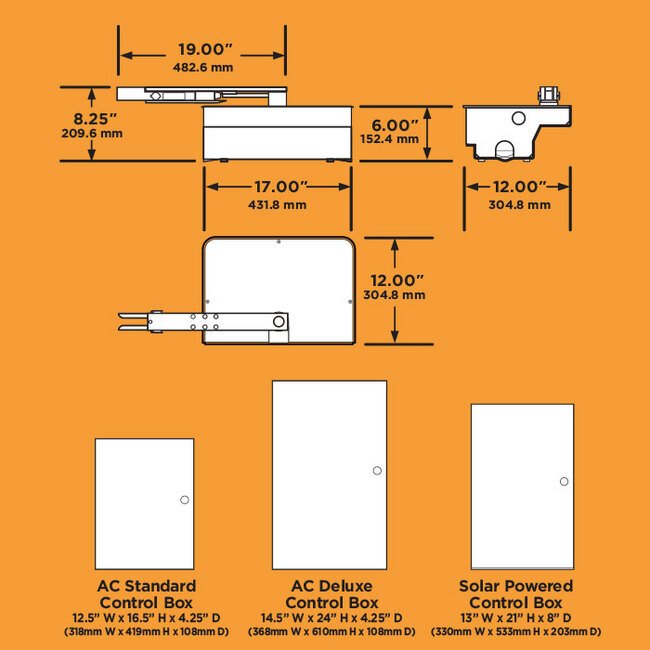

Maximum gate width 8-feet.Maximum gate weight 300 pounds. (Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)Swings gate 90 degrees in approximately 15-seconds.Actuator operates at 24 Volts DC power.Class I applications.Compliant with UL 325 and 991. ETL Listed.(Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)Dimensions (operator only): 17 "W x 6 "H x 12"LDimensions (120 Volt deluxe control box): 14.5 "W x 24 "H x 4.25 "DDimensions (120 Volt standard control box): 12.5 "W x 16.5 "H x 4.25 "DDimensions (Solar control box): 13 "W x 21 "H x 8 "D
