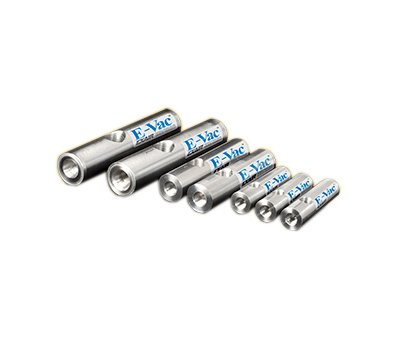

The 810002 In-Line E-Vac High Vacuum Generators are engineered for non-porous applications, offering vacuum levels up to 27" Hg and flows up to 15.8 SCFM. With 18 models available, these compact, portable units feature durable 6061 aluminum construction, fast response times, and quiet operation. Ideal for tasks like bag/package opening, leak testing, and robotic tooling, these generators enhance productivity with their single-stage design, maintenance-free operation, and ease of mounting. Experience instant vacuum and reliable performance with this lightweight, rugged solution.
Product Specifications
Specifications Advantages
18 Models | Compact, Portable | Durable 6061 Aluminum Construction | Easy to Mount at Point of Use | Fast Response - Increases Cycle Time | Instantaneous Vacuum | Lightweight, Rugged | No Moving Parts - No Maintenance | Quiet | Safe Operation - No Electricity | Single Stage Design Eliminates Fluctuations in Vacuum
Specifications Air Consumption
2.3 SCFM | 65.1 SLPM
Specifications Air Inlet
1/8 NPT
Specifications Applications
Bag/Package Opening | Carton Forming | Clamping and Chucking | Evacuate Containers | Label Placement | Leak Testing | Mold Evacuation | Paper Alignment and Feed in Printing Equipment | Pick and Place Parts and Equipment | Robotic Tooling | Surface Mounting | Vacuum Filling | Vacuum Forming | Vacuum Liquids for Testing | Vacuum Packaging | Vacuum Press for Wood Veneers and Laminates
Specifications Dimension F
0.88 in | 22 mm
Specifications Exhaust Port H
1/4 NPT
Specifications Length
3 in | 76 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level
86 dBA
Specifications Vacuum Flow At 0 Vacuum Level In Hg Kpa
2.3 SCFM | 65 SLPM
Specifications Vacuum Flow At 1241 Vacuum Level In Hg Kpa
0.87 SCFM | 24.6 SLPM
Specifications Vacuum Flow At 1551 Vacuum Level In Hg Kpa
0.74 SCFM | 21.0 SLPM
Specifications Vacuum Flow At 1861 Vacuum Level In Hg Kpa
0.56 SCFM | 16.0 SLPM
Specifications Vacuum Flow At 2171 Vacuum Level In Hg Kpa
0.46 SCFM | 13.0 SLPM
Specifications Vacuum Flow At 2481 Vacuum Level In Hg Kpa
0.20 SCFM | 5.7 SLPM
Specifications Vacuum Flow At 2791 Vacuum Level In Hg Kpa
0.00 SCFM | 0.0 SLPM
Specifications Vacuum Flow At 310 Vacuum Level In Hg Kpa
1.16 SCFM | 33.0 SLPM
Specifications Vacuum Flow At 620 Vacuum Level In Hg Kpa
1.00 SCFM | 28.3 SLPM
Specifications Vacuum Flow At 931 Vacuum Level In Hg Kpa
0.90 SCFM | 25.5 SLPM
Specifications Vacuum Flow At Maximum Vacuum
27 SCFM | 91 SLPM
Specifications Vacuum Inlet
1/8 NPT
Specifications Width
0.75 in | 19 mm
