In-Line E-Vac Low Vacuum Generators for Porous Applications - Model 800002
In-Line E-Vac Low Vacuum Generators for Porous Applications - Model 800002
SKU:INL-4f1ede
Enhance efficiency in porous material handling with In-Line E-Vac Low Vacuum Generators. Durable, compact, and maintenance-free for seamless operation.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
In-Line E-Vac Low Vacuum Generators for Porous Applications - Model 800002
$299.99
Quantity: 1
Claim Your Seller Account
In-Line E-Vac Low Vacuum Generators for Porous Applications - Model 800002
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

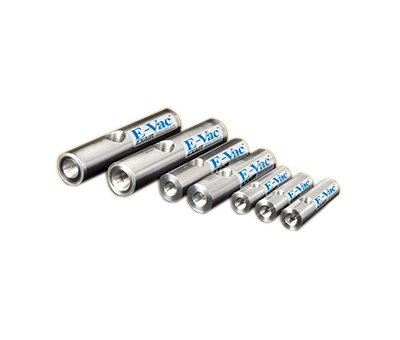

The In-Line E-Vac Low Vacuum Generators, Model 800002, are designed specifically for porous material applications, such as cardboard, to prevent warping and surface damage. With a vacuum flow of up to 18.5 SCFM and a maximum vacuum of 21" Hg, these generators offer unparalleled performance. Constructed from durable 6061 aluminum, these units are compact, portable, and require no maintenance due to their single-stage design. Ideal for various tasks like packaging, labeling, and robotic tooling, these generators ensure fast response times, quiet operation, and safe use without electricity. Upgrade your operations with these reliable and efficient vacuum generators.
Product Specifications
Specifications Advantages
18 Models | Compact, Portable | Durable 6061 Aluminum Construction | Easy to Mount at Point of Use | Fast Response - Increases Cycle Time | Instantaneous Vacuum | Lightweight, Rugged | No Moving Parts - No Maintenance | Quiet | Safe Operation - No Electricity | Single Stage Design Eliminates Fluctuations in Vacuum
Specifications Air Consumption
2.1 SCFM | 59.5 SLPM
Specifications Air Inlet
1/8 NPT
Specifications Applications
Bag/Package Opening | Carton Forming | Clamping and Chucking | Evacuate Containers | Label Placement | Leak Testing | Mold Evacuation | Paper Alignment and Feed in Printing Equipment | Pick and Place Parts and Equipment | Robotic Tooling | Surface Mounting | Vacuum Filling | Vacuum Forming | Vacuum Liquids for Testing | Vacuum Packaging | Vacuum Press for Wood Veneers and Laminates
Specifications Dimension F
0.88 in | 22 mm
Specifications Exhaust Port H
1/4 NPT
Specifications Length
3 in | 76 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level
80 dBA
Specifications Vacuum Flow At 0 Vacuum Level In Hg Kpa
2.1 SCFM | 60 SLPM
Specifications Vacuum Flow At 1241 Vacuum Level In Hg Kpa
1.45 SCFM | 41.1 SLPM
Specifications Vacuum Flow At 1551 Vacuum Level In Hg Kpa
0.95 SCFM | 26.9 SLPM
Specifications Vacuum Flow At 1861 Vacuum Level In Hg Kpa
0.56 SCFM | 15.9 SLPM
Specifications Vacuum Flow At 2171 Vacuum Level In Hg Kpa
0.00 SCFM | 0.0 SLPM
Specifications Vacuum Flow At 310 Vacuum Level In Hg Kpa
2.05 SCFM | 58.0 SLPM
Specifications Vacuum Flow At 620 Vacuum Level In Hg Kpa
1.91 SCFM | 54.1 SLPM
Specifications Vacuum Flow At 931 Vacuum Level In Hg Kpa
1.77 SCFM | 50.1 SLPM
Specifications Vacuum Flow At Maximum Vacuum
21 SCFM | 71 SLPM
Specifications Vacuum Inlet
1/8 NPT
Specifications Width
0.75 in | 19 mm
