Inch Threaded Inserts and Nose Seals Pack
Inch Threaded Inserts and Nose Seals Pack
SKU:PRE-0d32e8
High-quality Inch Threaded Inserts and Nose Seals pack for precise flow control in liquid and gas applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Inch Threaded Inserts and Nose Seals Pack
$49.99
Quantity: 1
Claim Your Seller Account
Inch Threaded Inserts and Nose Seals Pack
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

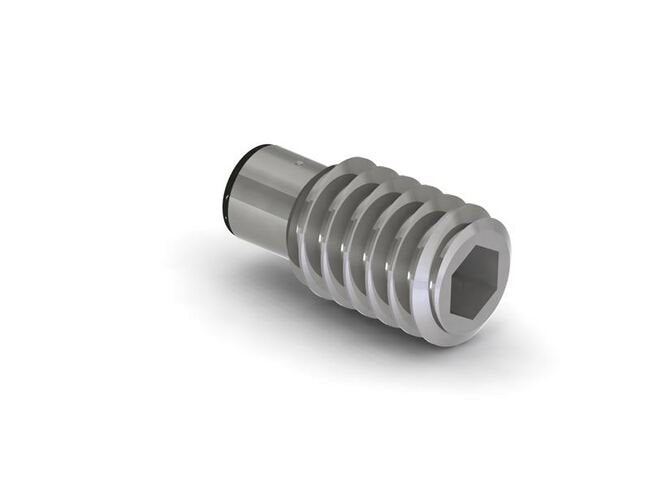

The Inch Threaded Inserts and Nose Seals pack includes high-quality 6-32 UNC, 10-32 UNF, 1/4"-20 UNC, and 5/16"-18 UNC orifices with Viton seal material and 303 SS construction, ensuring precision flow control for liquids and gases. These threaded inserts are designed for easy installation in fittings, manifolds, and custom parts, providing reliable performance at maximum pressures of 200 psig and temperatures up to 300 °F.
Product Specifications
Dimensions Orifice Diameter
0.0059 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Thread Size
6/32
Dimensions Total Length
0.310 in
Dimensions Width Across Flats Hex
1/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.182 | 5 psig: 0.45 | 10 psig: 0.65 | 15 psig: 0.82 | 20 psig: 0.97 | 25 psig: 1.12 | 30 psig: 1.26 | 40 psig: 1.56 | 50 psig: 1.86 | 60 psig: 2.16 | 70 psig: 2.46 | 80 psig: 2.75 | 90 psig: 3.05 | 100 psig: 3.35
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.086 | 5 psig (34.5 kPag): 0.21 | 10 psig (69.0 kPag): 0.31 | 15 psig (103.4 kPag): 0.39 | 20 psig (137.9 kPag): 0.46 | 25 psig (172.4 kPag): 0.53 | 30 psig (206.9 kPag): 0.60 | 40 psig (275.8 kPag): 0.74 | 50 psig (344.8 kPag): 0.88 | 60 psig (413.7 kPag): 1.02 | 70 psig (482.7 kPag): 1.16 | 80 psig (551.6 kPag): 1.30 | 90 psig (620.6 kPag): 1.44 | 100 psig (689.5 kPag): 1.58
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.392 | 20 In. Hg.: 0.392 | 30 In. Hg.: 0.392
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.185 | 20 In. Hg. (508 Mm. Hg.): 0.185 | 30 In. Hg. (762 Mm. Hg.): 0.185
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.273 | 10 In. Hg.: 0.356
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.129 | 10 In. Hg. (254 Mm. Hg.): 0.168
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0009 | 2 psig: 0.0012 | 3 psig: 0.0015 | 4 psig: 0.0017 | 5 psig: 0.0019 | 6 psig: 0.0021 | 7 psig: 0.0023 | 8 psig: 0.0024 | 9 psig: 0.0026 | 10 psig: 0.0027 | 15 psig: 0.0033 | 20 psig: 0.0038 | 30 psig: 0.0047 | 40 psig: 0.0054 | 50 psig: 0.0061 | 60 psig: 0.0067 | 70 psig: 0.0072 | 80 psig: 0.0077 | 90 psig: 0.0082 | 100 psig: 0.0086
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0033 | 2 psig (13.8 kPag): 0.0046 | 3 psig (20.7 kPag): 0.0056 | 4 psig (27.6 kPag): 0.0065 | 5 psig (34.5 kPag): 0.0073 | 6 psig (41.4 kPag): 0.0073 | 7 psig (48.3 kPag): 0.0086 | 8 psig (55.2 kPag): 0.0092 | 9 psig (62.1 kPag): 0.0098 | 10 psig (69 kPag): 0.0103 | 15 psig (103.4 kPag): 0.0126 | 20 psig (137.9 kPag): 0.0146 | 30 psig (206.9 kPag): 0.0178 | 40 psig (275.8 kPag): 0.0206 | 50 psig (344.8 kPag): 0.0230 | 60 psig (413.7 kPag): 0.0252 | 70 psig (482.7 kPag): 0.0272 | 80 psig (551.6 kPag): 0.0291 | 90 psig (620.6 kPag): 0.0309 | 100 psig (689.5 kPag): 0.0326
Specifications Connection A
6-32 UNC Threaded Insert O-ring seal
Specifications Cv
0.00086
Specifications Material
303 SS
Specifications Maximum Opening Diameter
0.047 in
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Nominal Orifice Size
6
Specifications Screened
None
Specifications Seal Material
Viton
