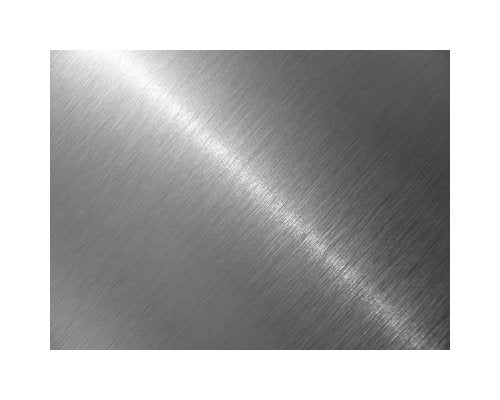

Incoloy 800HT High-Temperature Sheet

Name: Incoloy 800HT High-Temperature Sheet
Brand: Continental Steel & Tube Co.
SKU: NIC-92d620
Price: 49.99 USD
Availability: OutOfStock

SKU:NIC-92d620

Discover unmatched strength and heat resistance with the Incoloy 800HT Sheet, perfect for high-temperature environments.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Incoloy 800HT High-Temperature Sheet is a resilient nickel-iron-chromium alloy crafted for enduring high-temperature environments with exceptional strength and resistance to oxidation and carburization. Ideal for process piping, heat exchangers, and nuclear steam-generator tubing, this alloy maintains a stable austenitic structure even under prolonged exposure to extreme heat. With a composition meeting ASME SB-409, ASTM B409, and UNS N08811 specifications, this sheet guarantees reliability and longevity in demanding industrial applications.

Product Specifications

Nickel Alloy Compositions Alloy

Incoloy 800HT

Nickel Alloy Compositions Astm Specification

ASME SB-409 | ASTM B409 | UNS N08811

Nickel Alloy Compositions Basic Composition

Nickel Alloy Compositions Density

0.287 lbs/inÂ³ | 7.94 g/cmÂ³

Specifications Material

IncoloyÂ®

Specifications Shapeform

Sheets

Specifications Thickness

0.125 inches | 3.1750 mm

Mechanical Properties Melting Temperature Range

2475 to 2525 ÂºF | 1357 to 1385 ÂºC

Mechanical Properties Rupture Strength 1000 H At 1200f65

24000 psi | 165 MPa

Mechanical Properties Rupture Strength 1000 H At 1300f70

15000 psi | 105 MPa

Mechanical Properties Rupture Strength 1000 H At 1400f76

10000 psi | 70 MPa

Mechanical Properties Rupture Strength 1000 H At 1600f87

4700 psi | 32 MPa

Mechanical Properties Rupture Strength 1000 H At 1800f98

2000 psi | 14 MPa
