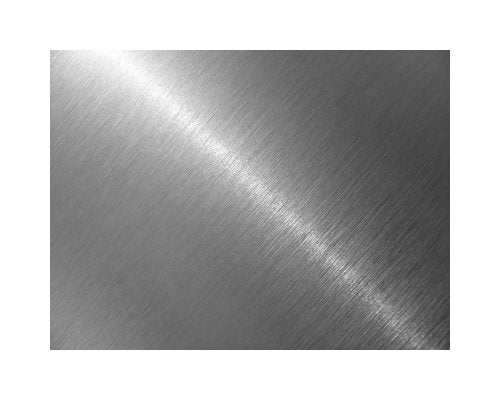

The Incoloy 800HT Nickel Alloy Sheet is a premium nickel-iron-chromium alloy renowned for its exceptional strength, superior oxidation and carburization resistance in high-temperature applications, and remarkable corrosion resistance to various aqueous environments. With a stable austenitic structure under prolonged high-temperature exposure, this sheet is ideal for critical uses such as process piping, heat exchangers, carburizing equipment, heating-element sheathing, and nuclear steam-generator tubing. Manufactured to ASTM specifications ASME SB-409, ASTM B409, and UNS N08811, this sheet guarantees reliability and performance in demanding industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nickel Alloy Compositions Alloy
Incoloy 800HT
Nickel Alloy Compositions Astm Specification
ASME SB-409 | ASTM B409 | UNS N08811
Nickel Alloy Compositions Basic Composition
0.015% Max. Sulphur | 0.10% Carbon | 0.60% Aluminum | 0.60% Titanium | 0.75% Max. Copper | 1.0% Max. Silicon | 1.20% Aluminum +Titanium | 1.50% Max. Manganese | 23.0% Chrominum | 35.0% Nickel | 39.5% Min. Iron
Nickel Alloy Compositions Density
0.287 lbs/in³ | 7.94 g/cm³
Specifications Material
Incoloy®
Specifications Shapeform
Sheets
Specifications Thickness
0.062 inches | 1.5748 mm
Mechanical Properties Melting Temperature Range
2475 to 2525 ºF | 1357 to 1385 ºC
Mechanical Properties Rupture Strength 1000 H At 1200f65
24000 psi | 165 MPa
Mechanical Properties Rupture Strength 1000 H At 1300f70
15000 psi | 105 MPa
Mechanical Properties Rupture Strength 1000 H At 1400f76
10000 psi | 70 MPa
Mechanical Properties Rupture Strength 1000 H At 1600f87
4700 psi | 32 MPa
Mechanical Properties Rupture Strength 1000 H At 1800f98
2000 psi | 14 MPa
