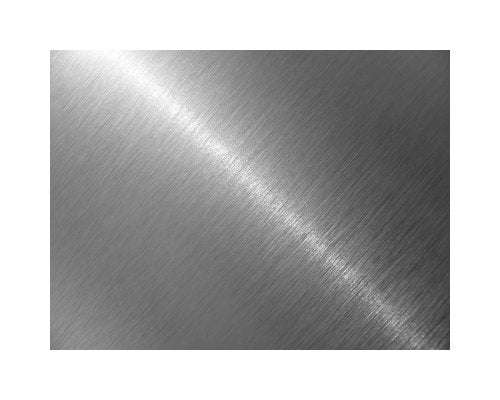

Incoloy 825 High Temp Sheet
Incoloy 825 High Temp Sheet
SKU:NIC-d1bcb4
Premium Incoloy 825 Sheet with exceptional strength, oxidation resistance, and ASME SB-424 compliance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Incoloy 825 High Temp Sheet
$299.99
Quantity: 1
Claim Your Seller Account
Incoloy 825 High Temp Sheet
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Incoloy® 825 Sheet is a premium nickel-iron-chromium alloy renowned for its exceptional strength and superb resistance to oxidation, carburization, and corrosive aqueous environments. With a stable austenitic structure at high temperatures, this sheet is ideal for process piping, heat exchangers, carburizing equipment, and more. Compliant with ASME SB-424, ASTM B424, and UNS N08825 standards, this sheet offers outstanding mechanical properties like a tensile strength of 100,000 psi and a yield strength of 45,000 psi.
Product Specifications
Nickel Alloy Compositions Alloy
Incoloy 825
Nickel Alloy Compositions Astm Specification
ASME SB-424 | ASTM B424 | UNS N08825
Nickel Alloy Compositions Basic Composition
1.0% Titanium | 2.0% Copper | 21.5% Chrominum | 28.0% Iron | 3.0% Molybdenum | 44.0% Nickel
Nickel Alloy Compositions Density
0.294 lbs/in³ | 8.14 g/cm³
Specifications Material
Incoloy®
Specifications Shapeform
Sheets
Specifications Thickness
0.134 inches | 3.4036 mm
Mechanical Properties Elongation
45 %
Mechanical Properties Melting Temperature Range
2500 to 2550 ºF | 1370 to 1400 ºC
Mechanical Properties Tensile Strength
100000 psi | 690 MPa
Mechanical Properties Yield Strength 02 Offset
45000 psi | 310 MPa
