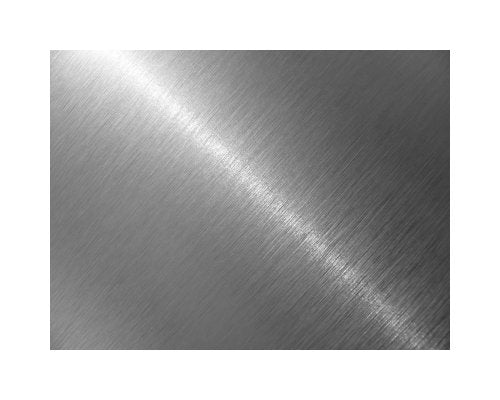

Incoloy® 825 High Temperature Alloy Sheet
Incoloy® 825 High Temperature Alloy Sheet
SKU:NIC-d94638
Discover the high-performance Incoloy® 825 Sheet - perfect for high-temperature applications. Compliant with ASME SB-424, ASTM B424, UNS N08825.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Incoloy® 825 High Temperature Alloy Sheet
$299.99
Quantity: 1
Claim Your Seller Account
Incoloy® 825 High Temperature Alloy Sheet
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Incoloy® 825 High Temperature Alloy Sheet is a nickel-iron-chromium alloy known for its exceptional strength, resistance to oxidation, and durability in high-temperature environments. With a composition including 44.0% Nickel, 21.5% Chromium, 3.0% Molybdenum, and more, this sheet material ensures superior performance in applications such as process piping, heat exchangers, and nuclear steam-generator tubing. It complies with ASME SB-424, ASTM B424, and UNS N08825 specifications, offering a reliable solution for demanding industrial needs.
Product Specifications
Nickel Alloy Compositions Alloy
Incoloy 825
Nickel Alloy Compositions Astm Specification
ASME SB-424 | ASTM B424 | UNS N08825
Nickel Alloy Compositions Basic Composition
1.0% Titanium | 2.0% Copper | 21.5% Chrominum | 28.0% Iron | 3.0% Molybdenum | 44.0% Nickel
Nickel Alloy Compositions Density
0.294 lbs/in³ | 8.14 g/cm³
Specifications Material
Incoloy®
Specifications Shapeform
Sheets
Specifications Thickness
0.104 inches | 2.6416 mm
Mechanical Properties Elongation
45 %
Mechanical Properties Melting Temperature Range
2500 to 2550 ºF | 1370 to 1400 ºC
Mechanical Properties Tensile Strength
100000 psi | 690 MPa
Mechanical Properties Yield Strength 02 Offset
45000 psi | 310 MPa
