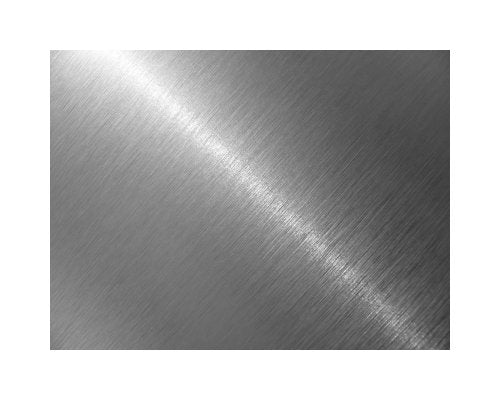

Incoloy® 825 High-Temperature Alloy Sheet
Incoloy® 825 High-Temperature Alloy Sheet
SKU:NIC-38d99e
Discover the durability of Incoloy® 825 Sheet - ideal for high-temperature applications with excellent corrosion resistance and mechanical strength.
Regular price
$150.00
Regular price
Sale price
$150.00
Unit price
per
Initiate Order
Incoloy® 825 High-Temperature Alloy Sheet
$150.00
Quantity: 1
Claim Your Seller Account
Incoloy® 825 High-Temperature Alloy Sheet
$150.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Incoloy® 825 Sheet is a durable nickel-iron-chromium alloy renowned for its exceptional strength, oxidation resistance, and corrosion resistance in high-temperature environments. With a stable austenitic structure, this sheet is ideal for diverse applications including process piping, heat exchangers, and nuclear steam-generator tubing. Featuring a thickness of 0.093 inches (2.3622 mm) and meeting ASTM specifications ASME SB-424, ASTM B424, and UNS N08825, it offers superior mechanical properties with a tensile strength of 100,000 psi (690 MPa) and a yield strength of 45,000 psi (310 MPa). Invest in reliability and performance with the Incoloy® 825 Sheet.
Product Specifications
Nickel Alloy Compositions Alloy
Incoloy 825
Nickel Alloy Compositions Astm Specification
ASME SB-424 | ASTM B424 | UNS N08825
Nickel Alloy Compositions Basic Composition
1.0% Titanium | 2.0% Copper | 21.5% Chrominum | 28.0% Iron | 3.0% Molybdenum | 44.0% Nickel
Nickel Alloy Compositions Density
0.294 lbs/in³ | 8.14 g/cm³
Specifications Material
Incoloy®
Specifications Shapeform
Sheets
Specifications Thickness
0.093 inches | 2.3622 mm
Mechanical Properties Elongation
45 %
Mechanical Properties Melting Temperature Range
2500 to 2550 ºF | 1370 to 1400 ºC
Mechanical Properties Tensile Strength
100000 psi | 690 MPa
Mechanical Properties Yield Strength 02 Offset
45000 psi | 310 MPa
