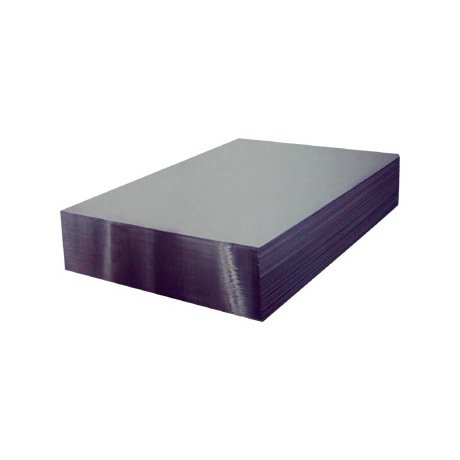

The Inconel 617 Plate is a high-performance nickel-chromium-cobalt-molybdenum alloy renowned for its exceptional metallurgical stability, strength, and oxidation resistance at elevated temperatures. With added aluminum for enhanced oxidation resistance and robust corrosion resilience, this plate is ideal for applications in gas turbines, petrochemical processing, heat-treating equipment, and nitric acid production. Meeting ASTM specifications ASME SB-166(w), ASTM B166(w), SAE 5887, and UNS N06617, this plate offers superior mechanical properties and a melting temperature range of 2430 to 2510 ºF. Elevate your projects with the reliability and durability of Inconel 617.
Product Specifications
Nickel Alloy Compositions Alloy
Inconel® 617
Nickel Alloy Compositions Astm Specification
ASME SB-166(w) | ASTM B166(w) | SAE 5887 | UNS N06617
Nickel Alloy Compositions Basic Composition
1.2% Aluminum | 1.5% Iron | 125% Cobalt | 22.0% Chrominum | 52.0% Nickel | 9.0% Molybdenum
Nickel Alloy Compositions Density
0.302 lbs/in³ | 8.36 g/cm³
Specifications Material
Inconel®
Specifications Plate Weight Per Unit Area
0.12245 lbs/in² | 86.09087252 kg/m²
Specifications Shapeform
Plates
Specifications Thickness
0.375 inches | 9.52 mm
Mechanical Properties Melting Temperature Range
2430 to 2510 ºF | 1330 to 1380 ºC
Mechanical Properties Rupture Strength 1000 H At 1200f65
47000 psi | 320 MPa
Mechanical Properties Rupture Strength 1000 H At 1400f76
22000 psi | 150 MPa
Mechanical Properties Rupture Strength 1000 H At 1600f87
8400 psi | 58 MPa
Mechanical Properties Rupture Strength 1000 H At 1800f98
3600 psi | 25 MPa
Mechanical Properties Rupture Strength 1000 H At 2000f10
1500 psi | 10 MPa
