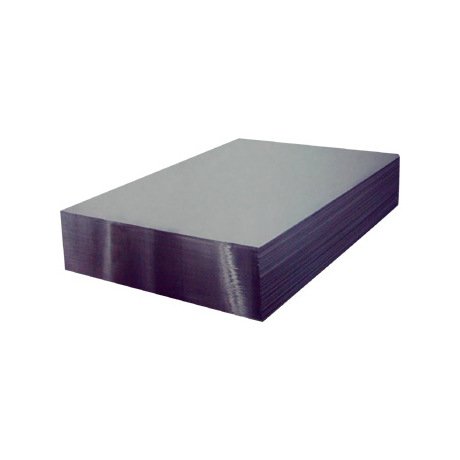

Inconel® 617 High Temperature Alloy Plate
Inconel® 617 High Temperature Alloy Plate
SKU:NIC-1c9eb0
Discover the exceptional metallurgical stability and high-temperature oxidation resistance of Inconel® 617 Plate, a top choice for gas turbines, petrochemical processing, and more.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
Inconel® 617 High Temperature Alloy Plate
$159.99
Quantity: 1
Claim Your Seller Account
Inconel® 617 High Temperature Alloy Plate
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Inconel® 617 Plate is a premium nickel-chromium-cobalt-molybdenum alloy renowned for its exceptional metallurgical stability, high strength, and outstanding oxidation resistance at elevated temperatures. With added aluminum for enhanced oxidation resistance, this plate also boasts superior resistance to a wide array of corrosive aqueous environments, making it a top choice for critical applications in gas turbines, petrochemical processing, heat-treating equipment, and nitric acid production. This plate is available in a thickness of 0.1875 inches (4.75 mm) and is meticulously crafted to meet the stringent ASTM specifications, ensuring reliability and performance in demanding industrial settings.
Product Specifications
Nickel Alloy Compositions Alloy
Inconel® 617
Nickel Alloy Compositions Astm Specification
ASME SB-166(w) | ASTM B166(w) | SAE 5887 | UNS N06617
Nickel Alloy Compositions Basic Composition
1.2% Aluminum | 1.5% Iron | 125% Cobalt | 22.0% Chrominum | 52.0% Nickel | 9.0% Molybdenum
Nickel Alloy Compositions Density
0.302 lbs/in³ | 8.36 g/cm³
Specifications Material
Inconel®
Specifications Plate Weight Per Unit Area
0.06315 lbs/in² | 44.39884524 kg/m²
Specifications Shapeform
Plates
Specifications Thickness
0.1875 inches | 4.75 mm
Mechanical Properties Melting Temperature Range
2430 to 2510 ºF | 1330 to 1380 ºC
Mechanical Properties Rupture Strength 1000 H At 1200f65
47000 psi | 320 MPa
Mechanical Properties Rupture Strength 1000 H At 1400f76
22000 psi | 150 MPa
Mechanical Properties Rupture Strength 1000 H At 1600f87
8400 psi | 58 MPa
Mechanical Properties Rupture Strength 1000 H At 1800f98
3600 psi | 25 MPa
Mechanical Properties Rupture Strength 1000 H At 2000f10
1500 psi | 10 MPa
