Indexing Turntable Blast System
Indexing Turntable Blast System
SKU:EMP-52b85a
Boost efficiency with our Indexing Turntable Blast System, reducing cleaning costs by over 30% with 16 blast guns for thorough, fast cleaning.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Indexing Turntable Blast System
$7,999.99
Quantity: 1
Claim Your Seller Account
Indexing Turntable Blast System
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

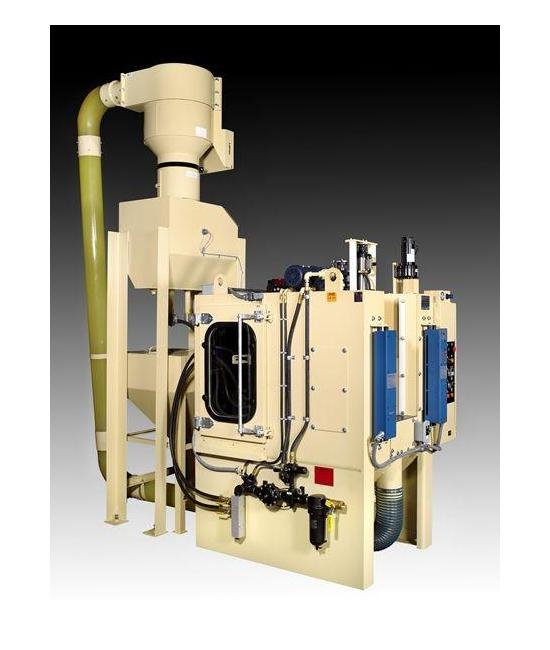

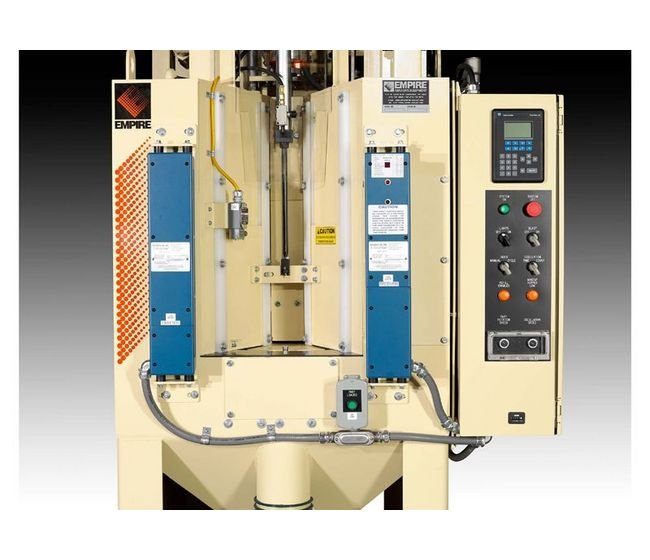

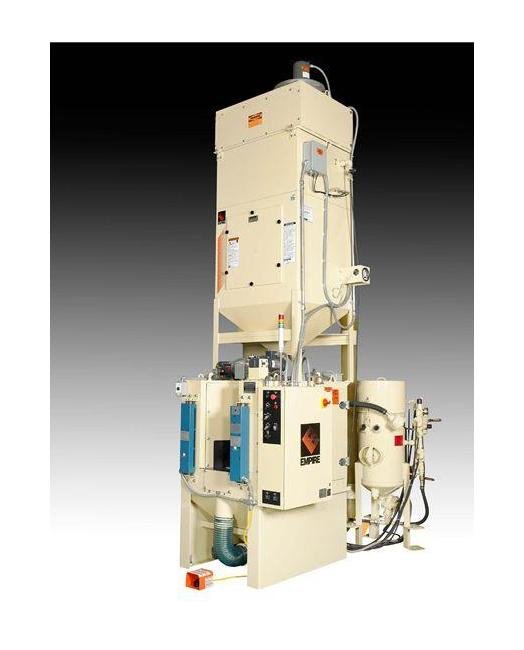

Enhance your cleaning process with our programmable Indexing Turntable Blast System. This innovative system reduces cleaning costs by over 30% compared to traditional methods. Featuring 16 blast guns oscillating vertically and horizontally, with spinning work stations on a rotating platform, it ensures thorough coverage and fast cleaning in a single pass. With customizable features like adjustable nozzle configurations, part-rotation speeds, and pneumatic doors, our system offers high productivity and efficiency for a variety of part sizes. Invest in superior cleaning solutions with our Indexing Turntable Blast System.
Product Specifications
Specifications Capacity Per Station
20 lb
Specifications Diameter
30 in
Specifications Indexing Turntable Machine Features
Because of their versatility, our indexing turntables handle a wide range of high-production jobs at a very attractive cost. Some of the features and options contributing to the unexcelled performance of our indexing turntables are listed below. We can tailor these machines to meet your needs with a minimum of custom engineering.Machines can be equipped with a variety of nozzle/gun configurations ranging from infinitely adjustable holders to horizontal and/or vertical oscillators interfaced with programmable controls.Part-rotation and nozzle-oscillation speeds are adjustable to accommodate a variety of part sizes.Standard machines include an exit vestibule, equipped with a blow-off manifold, and an inlet vestibule. These features separate the operator from the noisy blast environment while increasing production by cleaning the part of residual media and dust during the blast cycle.Pneumatic, vertically sliding doors speed up loading, constrain blast debris and reduce noise when equipped with a sound attenuator. You have the choice of air-blast systems powered by pressure, continuous pressure or suction. A pull-down shade protects the viewing window in the maintenance-access door. Quarter-inch-thick neoprene lining protects the interior of the cabinet, prolonging the life of metal surfaces. A large access door simplifies maintenance. An automatic media-replenishing system boosts productivity by minimizing downtime for refills and returning clean media to the system for more consistent air-blast results. Replaceable media-return duct features urethane to prolong tube life and reduce maintenance costs.Optional infrared curtain starts and stops blasting automatically. The curtain frees operators to perform other tasks while blasting is in progress. Door, latch and hinges are heavy duty, built to last. Select from three standard models: Empire's 20" table with a space-saving footprint or larger 36" and 48" indexing machines.Specify 6, 12, 18 or 24 work stations depending on the size of the turntable you choose. Machines can be designed for pick-and-place or robotic loading and unloading of work pieces with the addition of a precision turntable and infrared curtain.Custom fixtures and masking are available to meet special application requirements.
Specifications Maximum Part Size Dia X Height
12 x 20 in
Specifications Number Of Stations
6/12
Specifications Pressure Nozzles
0 to 8
Specifications Suction Guns
0 to 12
