Experience precise and durable position sensing with the LS1 Series Inductive Linear Position Sensor. With a measurement range of 100 mm and high tolerance to environmental conditions, this sensor ensures accurate and reliable performance. Featuring a compact profile, customizable options, and robust construction, it meets the stringent requirements of industrial and government applications. The sensor's non-contacting inductive technology, versatile mounting options, and insensitivity to magnetic fields make it ideal for various position sensing applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuating Rod
AISI 303 | Internal thread M2.5x6 | Stainless Steel | With anti-rotation safeguard
Specifications Approximate Weight With Cable
200 g
Specifications Approximate Weight With Connector
150 g
Specifications Bearings
Both ends in metal-polymer glide bearings

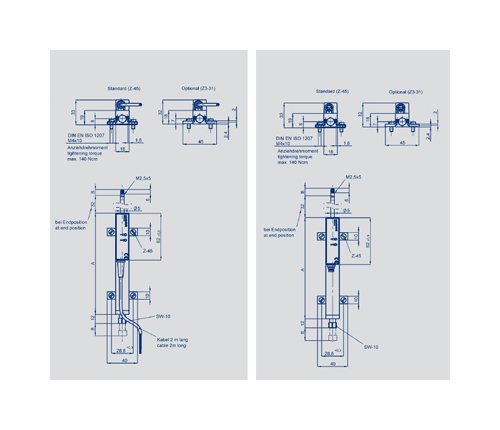

Specifications Body Length Dimension A
166 mm
Specifications Dc Output Current Signal
20 to 4 mA | 4 to 20 mA
Specifications Dc Overvoltage Protection Permanent
< 40 V
Specifications Dc Voltage
16 to 30 V
Specifications Electrical Connection
3-pin round connector | 3-wire PVC-cable | 3x 0,14 mm2 | Shielded 2 m length | Shielded | M8 x 1
Specifications Electrical Measuring Range
100 mm
Specifications Electronic
SMD with ASIC | Intergrated
Specifications Emission
RF noise field strength EN 55011, class B
Specifications Functional Safety
When using our products in safety-related systems, please contact us
Specifications Housing Material
Anodized Aluminum
Specifications Included In Delivery
1 probe tip with pressed-in hardened metal ball | 2 mounting clamps Z-45 incl. | 4 cylinder screws M4x10,
Specifications Insulation Resistance 500 Vdc
= 10 MO
Specifications Internal Resistance Of Voltage Output
120 O
Specifications Life
> 100 x 106 Movements
Specifications Maximum Operating Acceleration
5 g
Specifications Maximum Operating Force To End Stop
5 N
Specifications Maximum Operating Frequency
10 Hz
Specifications Maximum Operating Velocity
5 m/s
Specifications Maximum Permitted Tightening Torque For Mounting
140 N·cm
Specifications Maximum Supply Voltage Ripple Vss
10 %
Specifications Mean Time To Failure Mttf
24 Years
Specifications Measurement Principle
NOVOPAD Inductive
Specifications Mechanical Stroke Dimension B
105 mm
Specifications Mounting
Adjustable Clamps
Specifications Noise Immunity
Burst EN 61000-4-4 | Conducted disturbances induced by RF fields EN 61000-4-6 | ESD EN 61000-4-2 | Radiated immunity EN 61000-4-3
Specifications On Request Available
Customized length and electrical connection e.g. cable with connector.
Specifications Operating Force Horizontal
= 2.5
Specifications Operating Force Retracted Horizontal
= 5.0
Specifications Operating Humidity Range No Condensation
0 to 95 %
Specifications Operating Temperature Range With Cable
-30 to 100 ºC
Specifications Operating Temperature Range With Connector
-40 to 85 ºC

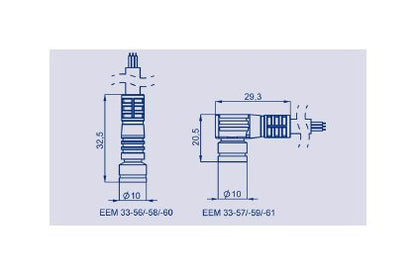

Specifications Optional Accessories
4 cylinder screws M4 x 10 | 4 mounting clamps Z3-31 incl. | P/N 059010 PUR-cable with 3-pin female connector, M8 x 1, 3 x 0.25 mm2, shielded: 2 m length, EEM 33-56, 5 m length, EEM 33-58, 10 m length, EEM 33-60 | PUR-cable with 3-pin female angled connector, M8 x 1,3 x 0.25 mm2, shielded: 2 m length, EEM 33-57, 5 m length, EEM 33-59, 10 m length, EEM 33-61.
Specifications Output Short Circuit Proof
Against supply max 30 VDC and GND (permanent)
Specifications Power Consumption Without Load
< 1 W
Specifications Probe Tip
Stainless steel with external thread M2.5 and pressed-in hardened metal ball
Specifications Protection Class
IP40 DIN EN 60529
