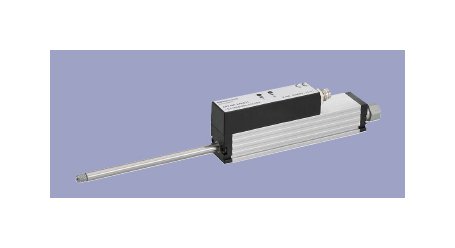

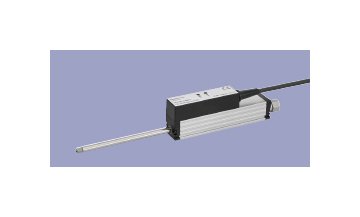

The Inductive Linear Position Sensor from Novotechnik, LS1 Series, is a cutting-edge solution designed for precise position sensing in diverse industrial applications. Featuring a durable anodized aluminum housing and AISI 303 stainless steel actuating rod, this sensor ensures high performance and longevity even in harsh conditions. With a measurement range of 25mm, ±0.1% absolute linearity, and high-speed update rates, this sensor delivers exceptional accuracy and reliability. Its compact profile, customizable output signals, and resistance to magnetic fields make it ideal for demanding environments. The LS1 Series meets stringent industry standards and offers outstanding functionality for optimal performance in any position sensing application.
Product Specifications
Specifications Absolute Linearity Fs
< ± 0.1 %
Specifications Actuating Rod
AISI 303 | Internal thread M2.5x6 | Stainless Steel | With anti-rotation safeguard
Specifications Approximate Weight With Cable
120 g
Specifications Approximate Weight With Connector
86 g
Specifications Bearings
Both ends in metal-polymer glide bearings

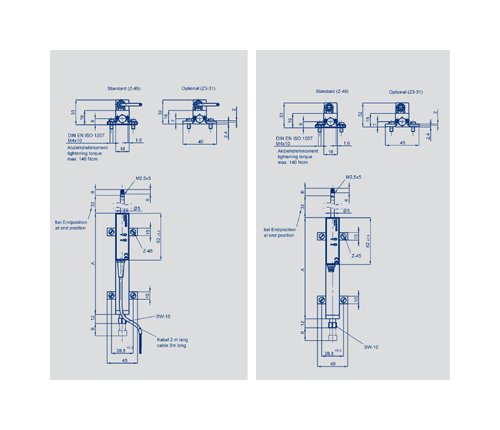

Specifications Body Length Dimension A
63 mm
Specifications Dc Output Voltage Signal
0.1 to 10 V | 10 to 0.1 V
Specifications Dc Overvoltage Protection Permanent
< 40 V
Specifications Dc Voltage
16 to 30 V
Specifications Electrical Connection
3-pin round connector | 3-wire PVC-cable | 3x 0,14 mm2 | Shielded 2 m length | Shielded | M8 x 1
Specifications Electrical Measuring Range
25 mm
Specifications Electronic
SMD with ASIC | Intergrated
Specifications Emission
RF noise field strength EN 55011, class B
Specifications Functional Safety
When using our products in safety-related systems, please contact us
Specifications Housing Material
Anodized Aluminum
Specifications Included In Delivery
1 probe tip with pressed-in hardened metal ball | 2 mounting clamps Z-45 incl. | 4 cylinder screws M4x10,
Specifications Insulation Resistance 500 Vdc
= 10 MO
Specifications Internal Resistance Of Voltage Output
120 O
Specifications Life
> 100 x 106 Movements
Specifications Maximum Operating Acceleration
5 g
Specifications Maximum Operating Force To End Stop
5 N
Specifications Maximum Operating Frequency
18 Hz
Specifications Maximum Operating Velocity
5 m/s
Specifications Maximum Permitted Tightening Torque For Mounting
140 N·cm
Specifications Maximum Supply Voltage Ripple Vss
10 %
Specifications Mean Time To Failure Mttf
24 Years
Specifications Measurement Principle
NOVOPAD Inductive
Specifications Mechanical Stroke Dimension B
30 mm
Specifications Mounting
Adjustable Clamps
Specifications Noise Immunity
Burst EN 61000-4-4 | Conducted disturbances induced by RF fields EN 61000-4-6 | ESD EN 61000-4-2 | Radiated immunity EN 61000-4-3
Specifications On Request Available
Customized length and electrical connection e.g. cable with connector.
Specifications Operating Force Horizontal
= 2.5
Specifications Operating Force Retracted Horizontal
= 5.0
Specifications Operating Humidity Range No Condensation
0 to 95 %
Specifications Operating Temperature Range With Cable
-30 to 100 ºC
Specifications Operating Temperature Range With Connector
-40 to 85 ºC

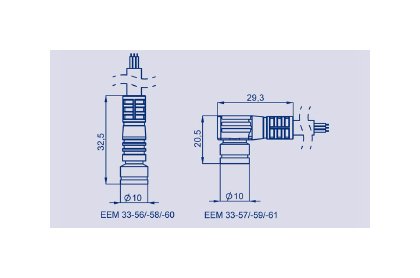

Specifications Optional Accessories
4 cylinder screws M4 x 10 | 4 mounting clamps Z3-31 incl. | P/N 059010 PUR-cable with 3-pin female connector, M8 x 1, 3 x 0.25 mm2, shielded: 2 m length, EEM 33-56, 5 m length, EEM 33-58, 10 m length, EEM 33-60 | PUR-cable with 3-pin female angled connector, M8 x 1,3 x 0.25 mm2, shielded: 2 m length, EEM 33-57, 5 m length, EEM 33-59, 10 m length, EEM 33-61.
Specifications Power Consumption Without Load
< 1 W
Specifications Repeatability Voltage High Speed Mode
< 10 mV,typical < 3 mV
Specifications Repeatability Voltage Low Speed Mode
< 5 mV,typical < 2 mV
