Industrial Alnico Fluid Line Filter
Industrial Alnico Fluid Line Filter
SKU:FLU-6823b0
Prevent tool damage with our Industrial Alnico Fluid Filter, designed to trap iron particles and extend tool life. Easy maintenance for uninterrupted operations.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Industrial Alnico Fluid Line Filter
$199.99
Quantity: 1
Claim Your Seller Account
Industrial Alnico Fluid Line Filter
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

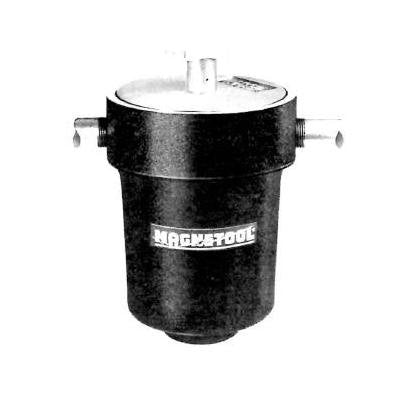

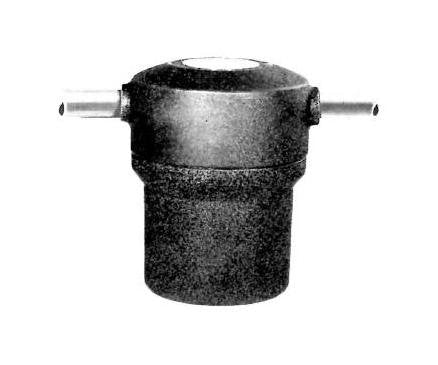

The Industrial Alnico Fluid Line Filter is the ultimate solution to prevent tool and workpiece damage from ferrous metal debris in coolant systems. Featuring Alnico magnet material and stainless steel housing, this filter traps iron particles, ensuring longer tool life and reduced downtime. With specifications including various pipe sizes, high capacity, and easy maintenance, this filter is a reliable choice for machining operations. Neodymium magnet material option available for finer tramp iron capture.
Product Specifications
Additional Information 0
Alnico magnet material is standard. Neodymium magnet material is available for fine tramp iron (less than 35 microns) and weakly magnetic contamination.
Manufacturing Notes 0
Standard Pipe Thread Size: Use reducers for other pipe sizes
Specifications Applications

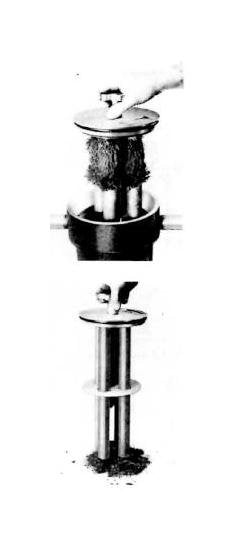

Trap the iron that damages your tools. | To clean, remove outer case, exposing cleaning sleeve. | Slide cleaning sleeve assembly down until clear of magnets. Trapped parts fall off.
Specifications Capacity
5 gpm | 16 gpm | 25 gpm
Specifications Housing Material
Stainless Steel
Specifications Magnet Material
Alnico
Specifications Maximum Pressure
100 psi
Specifications Net Weight
20 lb
Specifications Pipe Size
1/2 in | 3/4 in | 1 in
Specifications Standard Pipe Thread Size
1 in NPT
