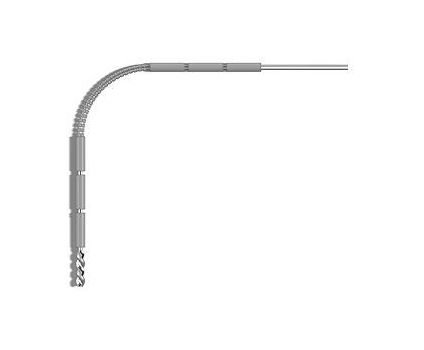

Industrial Angle Base Metal Thermocouple Elements
Industrial Angle Base Metal Thermocouple Elements
SKU:THE-57c463
Enhance temperature measurement with customizable industrial thermocouple elements for protection tubes.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Industrial Angle Base Metal Thermocouple Elements
$69.99
Quantity: 1
Claim Your Seller Account
Industrial Angle Base Metal Thermocouple Elements
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your protection tube assemblies with our Acrolab angle base metal thermocouple elements. Available in various calibrations, gauges, junction styles, and insulator options, these thermocouples ensure precise temperature measurement. The hot length is customizable, with additional length provided for terminal connections. Choose from options like twist and welded junctions, terminal blocks, and special constructions for tailored solutions. Designed for durability and accuracy, our thermocouple elements meet stringent industrial standards, making them ideal for both consumer and institutional applications.
Product Specifications
Specifications Calibration Type
J - Iron/Constantan | K - Chromel/Alumel | N - Nicrosil/Nisil
Specifications Hot Length
Specify
Specifications Insulations
00 - No Insulators, Bare Alloy | B - Ball and Socket | CI - Ceramic Insulator, Two Hole, Oval
Specifications Junction Styles
Dual | Single
Specifications Note For Hot Length

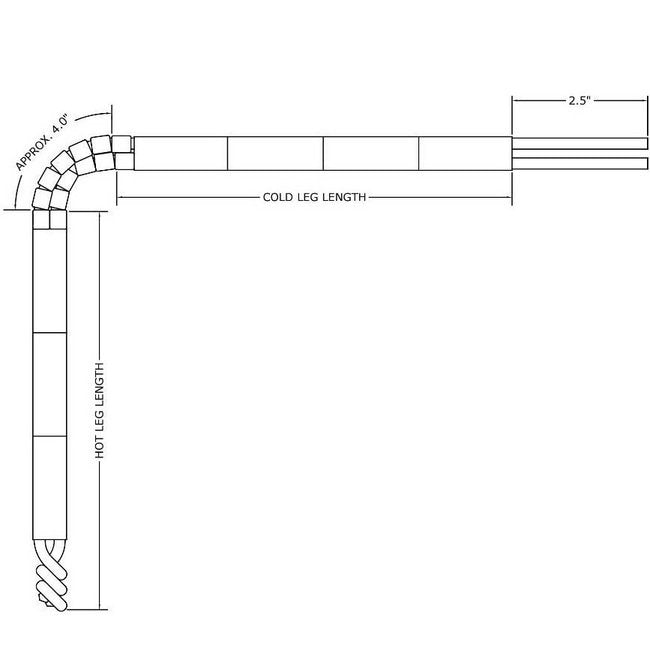

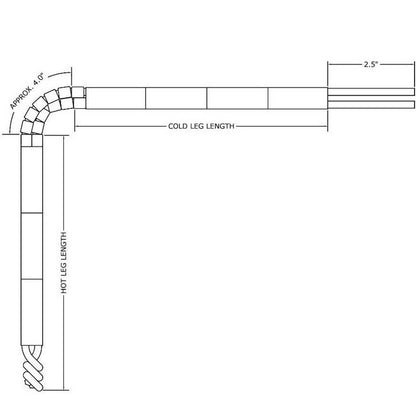

Actual Length Provided is 2.5" Longer than Specified to Allow for Terminal Connections.
Specifications Options
1 - Twist and Welded Junction | 2 - Butt Welded Junction | 341 - Single Terminal Block | 342 - Duplex Terminal Block | AA - Special Construction | L - Isolated Junction
Specifications Wire Gauge
11 - Gauge (J, K, Only) | 14 - Gauge (J, K, N Only) | 8 - Gauge (J, K, N Only)
