Industrial Carton Case Former Machine
Industrial Carton Case Former Machine
SKU:CAR-d20c65
Enhance productivity with the Industrial Carton Case Former Machine designed for semi-automatic case forming and packing. Simplify operations and increase ROI effortlessly.
Regular price
$6,895.00
Regular price
Sale price
$6,895.00
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

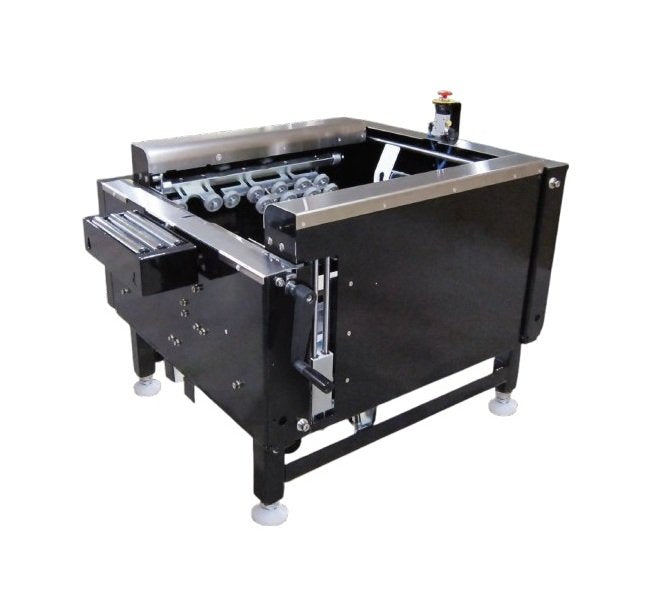

The Industrial Carton Case Former Machine from Eastey® Enterprises offers a reliable and efficient solution for semi-automatic case forming and packing. Constructed from industrial-strength 12 gauge steel with a powder-coated exterior, this machine ensures durability and longevity in your industrial operations. With adjustable conveyor height, easy operation for a single operator, and the ability to accommodate a wide range of box sizes, the EX-CF Case Former enhances productivity while simplifying your case packing process. Increase your ROI with minimal maintenance requirements and seamless integration with Eastey® Case Taper for automated case sealing.
Product Specifications
Box Specifications Maximum Box Depth
19.5 in
Box Specifications Maximum Box Length
25 in
Box Specifications Maximum Box Width
20 in
Box Specifications Minimum Box Depth
3 in
Box Specifications Minimum Box Length
7.5 in
Box Specifications Minimum Box Width
5.5 in
Easy Operation Easy Operation
The EX-CF Case Former enables a single operator to form, pack, and seal corrugate cases. Operation is simple: open the case and place it in the top of the case former. Photo sensors activate the machineâs flap folding mechanism to fold the bottom major and minor flaps. Once the flaps are folded, the case will stay in place while the case is filled by the operator. Filled cases can then be advanced into a taper for automated top and bottom case-sealing.
Features Features

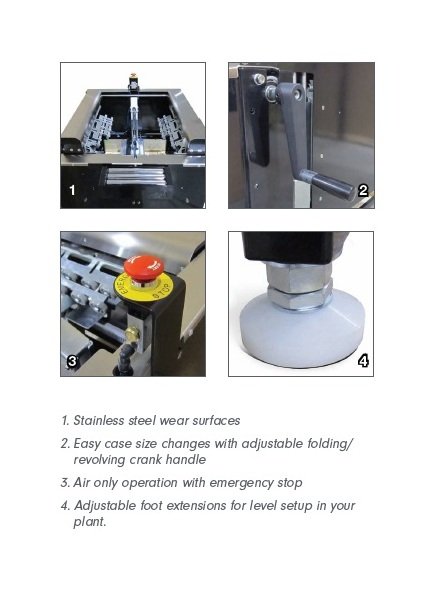

Plug-in and go operationAdjustable side guidesAdjustable foot extensionsFast and easy box size changesLow maintenanceAccommodates wide case rangeRoller extension included for wide boxesSmall exit roller table included
Increased Productivity Increased Productivity
EX-CF Case Former offers fast and easy case size changes with adjustable hand-crank side rails to accommodate boxes 7.5â to 25â in length, 5.5â to 20â wide, and 3â tall and greater.
Increased Roi Increased Roi
The use of Eastey®'s EX-CF case forming machine can be learned in minutes, avoiding breaks in production and downtime. For increased efficiency, EX-CF Case Former can be combined with an Eastey® Case Taper for automated case sealing.
Industrial Quality Industrial Quality
Each EX-CF machine is made from sturdy 12 gauge steel, high quality construction, and a powder coated exterior to protect the machine from abusive conditions for guaranteed years of use. The EX-CF will be a workhorse in your industrial case packing operation.
Technical Specs Adjustable Conveyor Height
27 to 34.6 in
Technical Specs Agency Certifications
European Conformity (CE)
Technical Specs Air Pressure
80 psi
Technical Specs Brands
Eastey®
Technical Specs Machinery Makeup
Industrial strength 12 gauge steel, powder coated for durability
The Right Solution The Right Solution
Rugged design. Proven reliability. Simple operation. Your benefits go on and on. When it comes to industrial operation, rely on Eastey® Enterprises to provide the right solution for your case sealing needs.
