Industrial Case Forming Machinery - Eastey EX-CF
Industrial Case Forming Machinery - Eastey EX-CF
SKU:PAC-d20c65
Increase productivity with the Eastey EX-CF Industrial Case Forming Machinery - CE certified, durable, and efficient.
Regular price
$7,899.99
Regular price
Sale price
$7,899.99
Unit price
per
Initiate Order
Industrial Case Forming Machinery - Eastey EX-CF
$7,899.99
Quantity: 1
Claim Your Seller Account
Industrial Case Forming Machinery - Eastey EX-CF
$7,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

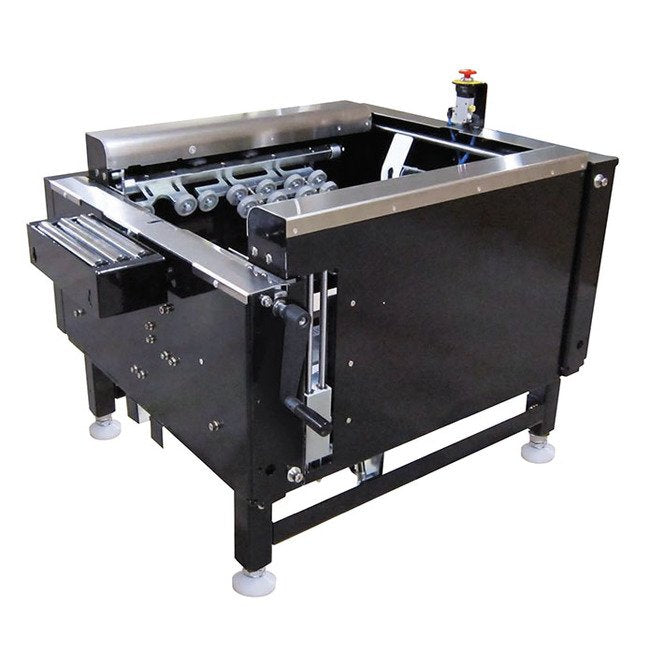

The Eastey EX-CF Industrial Case Forming Machinery is a durable and efficient solution for semi-automatic case forming and packing needs. Made from industrial strength 12-gauge steel and CE certified, this machinery offers easy operation with adjustable features for increased productivity. It provides fast box size changes, air-only operation, and stainless steel wear surfaces for low maintenance and long-term use. Increase your ROI with this rugged and reliable case forming machine, designed to meet the demanding needs of industrial operations.
Product Specifications
Additional Information Additional Information
EASY OPERATIONThe EX-CF Case Former enables a single operator to form, pack, and seal corrugate cases. Operation is simple: open the case and place it in the top of the case former. Pneumatic switches activate the machine's flap folding mechanism to fold the bottom major and minor flaps. Once the flaps are folded, the case will stay in place while the case is filled by the operator. Filled cases can then be advanced into a taper for automated top and bottom case-sealing.INCREASED PRODUCTIVITYEX-CF Case Former offers fast and easy case size changes with adjustable hand-crank side rails to accommodate boxes 7.5â to 25â in length, 5.5â to 20â wide, and 3â tall and greater.INDUSTRIAL QUALITYEach EX-CF machine is made from sturdy 12 gauge steel, high quality construction, and a powder coated exterior to protect the machine from abusive conditions for guaranteed years of use. The EX-CF will be a workhorse in your industrial case packing operation.INCREASED ROIThe use of Eastey's EX-CF case forming machine can be learned in minutes, avoiding breaks in production and downtime. For increased efficiency, EX-CF Case Former can be combined with an Eastey Case Taper for automated case sealing.THE RIGHT SOLUTIONRugged design. Proven reliability. Simple operation. Your benefits go on and on. When it comes to industrial operation, rely on Eastey to provide the right solution for your case sealing needs.
Box Specifications Maximum Box Depth
19.5 in
Box Specifications Maximum Box Length
25 in
Box Specifications Maximum Box Width
20 in
Box Specifications Minimum Box Depth
3 in
Box Specifications Minimum Box Length
7.5 in
Box Specifications Minimum Box Width
5.5 in
Features Features
Plug-in and go operationAdjustable side guidesAdjustable foot extensionsFast and easy box size changesLow maintenanceAccommodates wide case rangeRoller extension included for wide boxesSmall exit roller table included
Key Features Key Features

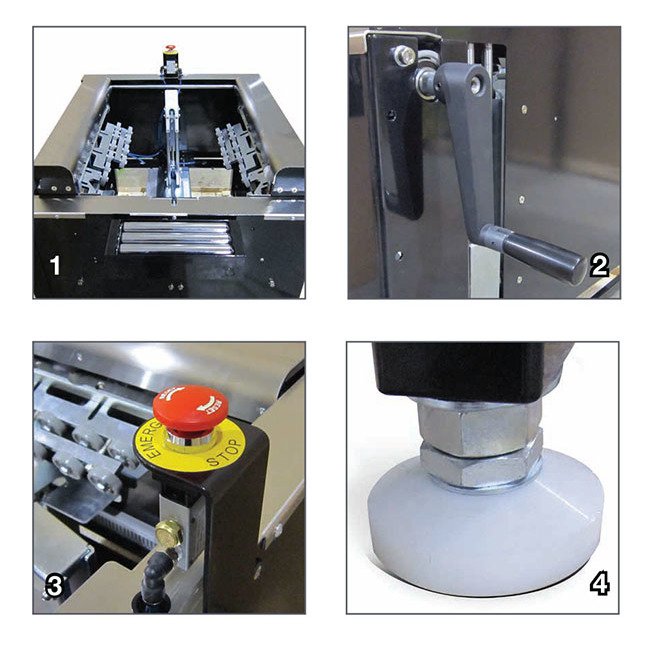

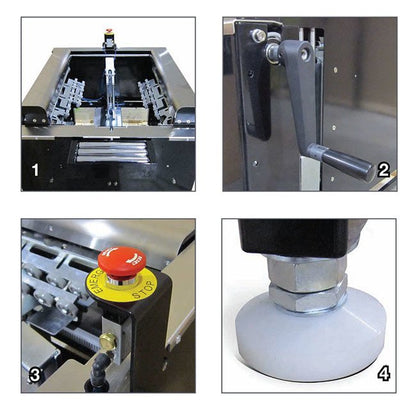

Stainless steel wear surfacesEasy case size changes with adjustable folding/ revolving crank handleAir only operation with emergency stopAdjustable foot extensions for level setup in your plant.
Specifications Agency Approvals
European Conformity (CE) Certification
Specifications Air Requirements
80 psi
Specifications Conveyor Height Adjustment
27 to 34.6 in
Specifications Electrical Requirements
None
Specifications Machinery Makeup
Industrial Strength 12 Gauge Steel, Powdered Coated for Durability
