Industrial CB Drum Hubs - Size 18CB500
Industrial CB Drum Hubs - Size 18CB500
SKU:CLU-327141
Dependable Industrial CB Drum Hubs for high-speed operations and power transmission. Size 18CB500.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Industrial CB Drum Hubs - Size 18CB500
$899.99
Quantity: 1
Claim Your Seller Account
Industrial CB Drum Hubs - Size 18CB500
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Industrial CB Drum Hubs in size 18CB500 are meticulously engineered to deliver reliable clutch and brake performance in demanding industrial settings. With a focus on precision, these drum hubs are ideal for high-speed cyclic operations and power transmission applications. Designed for durability and efficiency, they excel in providing consistent service in rigorous environments.

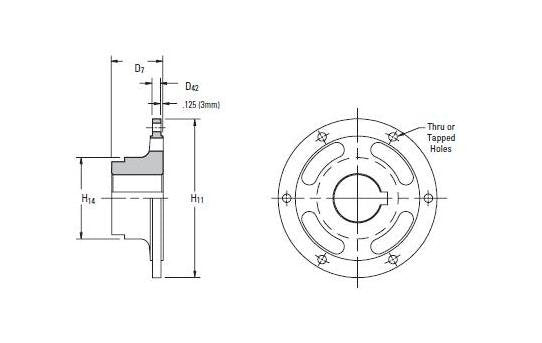

Product Specifications
Specifications Dimension D42
0.75 in | 19 mm
Specifications Dimension D7
5.75 in | 146 mm
Specifications Dimension H11
15.00 in | 381 mm
Specifications Dimension H14
7.50 in | 191 mm
Specifications Inertia
6.50 lb·ft² | 0.27 kg·m²
Specifications Maximum Bore
4.75 in | 121 mm
Specifications Minimum Bore
2.25 in | 57 mm
Specifications Size
18CB500
Specifications Type
Thru Holes
Specifications Weight
74 lb | 34 kg
