Industrial CB Drum Hubs - Size 28CB525
Industrial CB Drum Hubs - Size 28CB525
SKU:CLU-e11f46
Dependable CB drum hubs for high-speed industrial applications. Superior performance and durability guaranteed.
Regular price
$449.99
Regular price
Sale price
$449.99
Unit price
per
Initiate Order
Industrial CB Drum Hubs - Size 28CB525
$449.99
Quantity: 1
Claim Your Seller Account
Industrial CB Drum Hubs - Size 28CB525
$449.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Industrial CB Drum Hubs Size 28CB525 are meticulously engineered for optimal clutch and brake performance in demanding industrial environments. Suited for high-speed operations and precise power transmission, these mounting components guarantee reliable service. With a weight of 175 lb, inertia of 61.00 lb·ft², and dimensions tailored to industrial needs, these drum hubs excel in efficiency and durability.

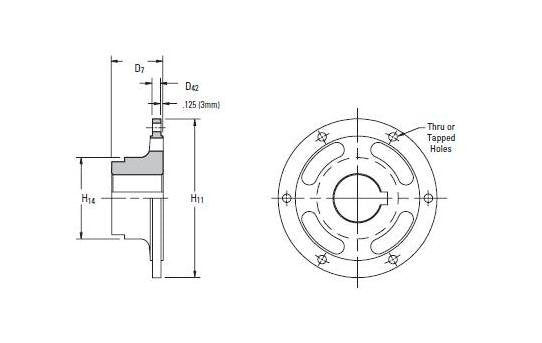

Product Specifications
Specifications Dimension D42
0.75 in | 19 mm
Specifications Dimension D7
6.50 in | 165 mm
Specifications Dimension H11
25.00 in | 635 mm
Specifications Dimension H14
9.00 in | 229 mm
Specifications Inertia
61.00 lb·ft² | 2.56 kg·m²
Specifications Maximum Bore
5.50 in | 140 mm
Specifications Minimum Bore
2.75 in | 70 mm
Specifications Size
28CB525
Specifications Type
Thru Holes
Specifications Weight
175 lb | 79 kg
