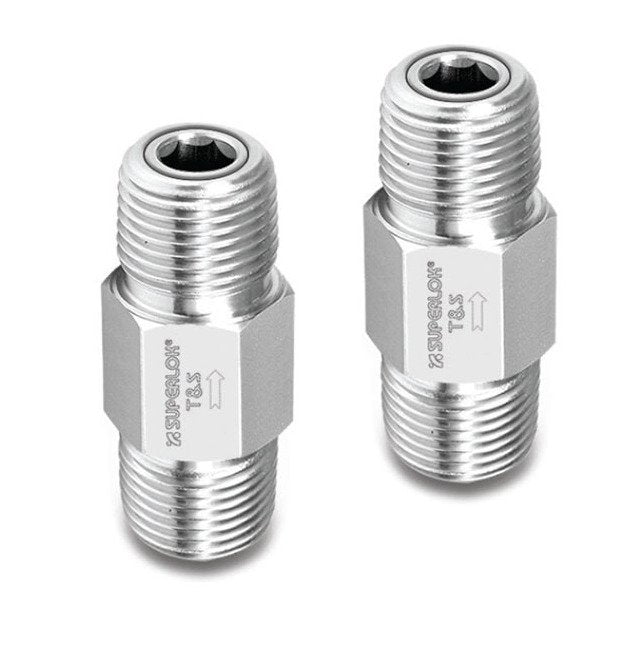

Industrial Check Valve - 71.9mm Dimension A, 26.9mm Hex h, One-Piece Design
Industrial Check Valve - 71.9mm Dimension A, 26.9mm Hex h, One-Piece Design
SKU:SOC-3e9134
Premium industrial check valve with 71.9mm Dimension A, 26.9mm Hex h, and 3000 psig maximum working pressure; ensures precision flow control and reliability.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Industrial Check Valve - 71.9mm Dimension A, 26.9mm Hex h, One-Piece Design
$99.99
Quantity: 1
Claim Your Seller Account
Industrial Check Valve - 71.9mm Dimension A, 26.9mm Hex h, One-Piece Design
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

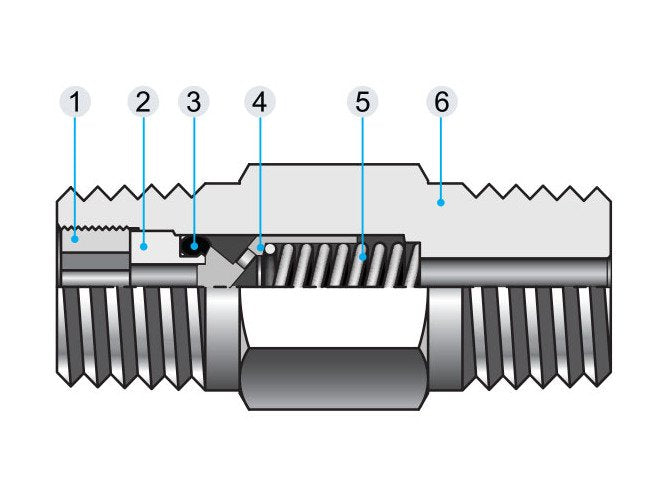

The SOCV Series 71.9mm Dimension A and 26.9mm Hex h One-Piece Check Valve is a high-performance valve designed for industrial applications. With a maximum working pressure of 3000 psig and precise flow control through a flow coefficient (Cv) of 1.20, this valve ensures reliable performance in demanding conditions. The valve features a 316 stainless steel body, Fluorocarbon (FKM) O-Ring for temperature resistance, and NBR O-Ring options. Each valve undergoes rigorous factory testing for cracking pressure and reseal performance, guaranteeing quality and durability.
Product Specifications
Features Features
One-piece BodyNPT and ISO pipe end connections316 stainless steel body as standardEach and every valve is tested for cracking pressure and reseal performance at the factory.
Note Note

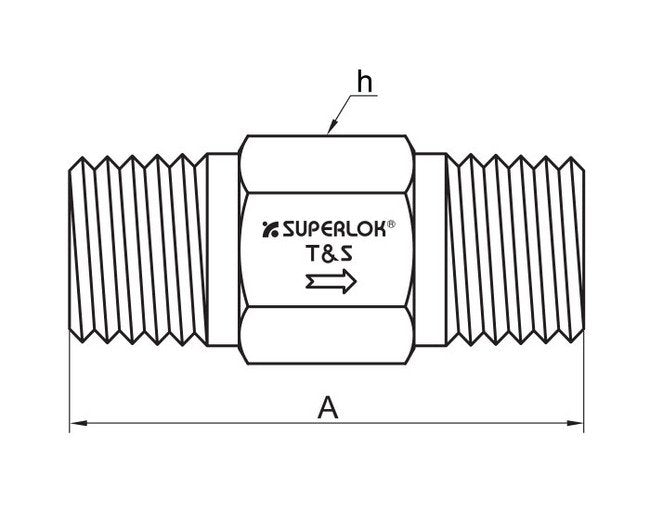

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
71.9 mm
Technical Specs Flow Coefficients Cv
1.20
Technical Specs Fluorocarbon Fkm O Ring Temperature Rating
-10 to 375 ºF | -23 to 190 ºC
Technical Specs Hex H
26.9 mm | 1-1/16 in
Technical Specs Inlet End Connections
1/2 in. Male National Pipe Thread (MNPT)
Technical Specs Maximum Back Pressure At 70 Degree Fahrenheit F
3000 psig | 206 bar
Technical Specs Maximum Working Pressure At 70 Degree Fahrenheit
3000 psig | 206 bar
Technical Specs Nitrile Butadiene Rubber Nbr O Ring Temperature
-10 to 250 ºF | -23 to 121 ºC
Technical Specs Nominal Cracking Pressure
1/3 psig | 1 psig | 10 psig | 25 psig | 0.02 bar | 0.06 bar | 0.68 bar | 1.7 bar
Technical Specs Outlet End Connections
1/2 Female National Pipe Thread (FNPT)
Technical Specs Seal Material
Fluorocarbon (FKM) (Standard) | Nitrile Butadiene Rubber (NBR)
