Industrial Check Valves - Carbon Steel Inline Flow Control Valves
Industrial Check Valves - Carbon Steel Inline Flow Control Valves
SKU:ACC-266075
Experience precision flow control with our Industrial Check Valves - DIN 3852 certified, durable carbon steel construction.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Industrial Check Valves - Carbon Steel Inline Flow Control Valves
$49.99
Quantity: 1
Claim Your Seller Account
Industrial Check Valves - Carbon Steel Inline Flow Control Valves
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Industrial Check Valves are designed for precision flow control applications with a Model Code RV-25-01.X/0. Featuring BSPP port configuration, these valves offer a durable carbon steel housing, inline mounting, and a cracking pressure of 0.8 bar | 10 psi. With industry-standard DIN 3852 certification, these valves ensure reliable performance in a wide temperature range from -4 ºF to 212 ºF. Experience optimal flow control with metal-to-metal seal design and hardened steel poppet construction.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

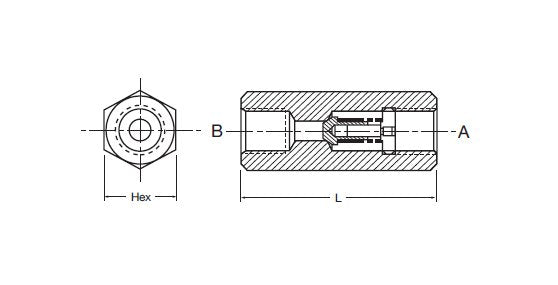

Dimensions Dimension L
5.63 in | 143 mm
Dimensions Hex Size
2 3/8 in | 60 mm
Features 0
9 Sizes, 1/8" - 2"NPT or SAE O-Ring connections and manifold mountingMetal to metal seal design for poppetHardened and ground steel poppet
Note 0
Not recommended for high-cycle applications!Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
0.8 bar | 10 psi
Specifications Division
ACCESSORIES
Specifications End Size
G1 1/4
Specifications End Type
BSPP
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
DIN 3852
Specifications Kinematic Viscosity At 86f30c
335 SUS
Specifications Maximum Temperature At Full Pressure
212 ºF
Specifications Minimum Temperature At Full Pressure
-4 ºF
Specifications Model Code Description
RV-25-01.X/0
Specifications Mounting Type
Inline Mounting
Specifications Nominal Sizes
25
Specifications Operating Pressure Max
345 bar | 5000 psi
Specifications Port Configuration
BSPP
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
G1 1/4
Specifications Second End Type
BSPP
Specifications Type
Flow Control Valve
Specifications Weight
0.1 kg | 0.22 lb
