Industrial Chip Deflector - 2.125" x 1.125" Standard Size

Name: Industrial Chip Deflector - 2.125" x 1.125" Standard Size
Brand: Bermar Associates, Inc.
SKU: STA-327772
Price: 29.99 USD
Availability: OutOfStock

SKU:STA-327772

Durable 16-gauge steel chip deflector for machinery protection and enhanced durability. Customizable and easy to install.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

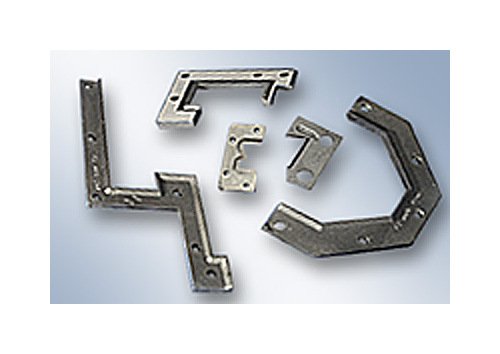

Upgrade your machinery with our Industrial Chip Deflector, crafted from durable 16 gauge cold-rolled steel for superior protection against metal chips. Perfect for hot chip applications, it doubles as a stiffener, enhancing machine way and way wiper durability. Customizable to fit your specific needs, it comes with or without hole patterns. Easy to install with included mounting instructions for seamless integration. Protect your equipment with confidence.

Product Specifications

Mounting Instructions Mounting Instructions

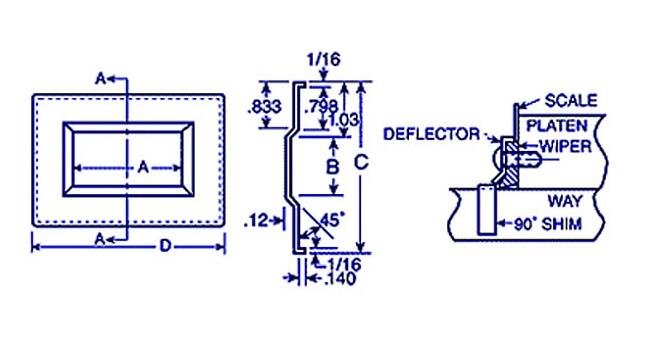

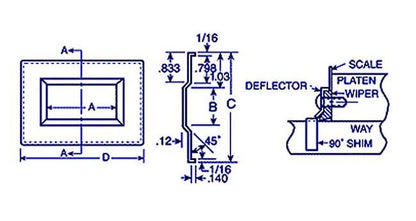

Slide wiper into position.Place deflector over wiper.Insert all screws. Leave loose.Use 1/16 x 90Âº shim under lip of deflector.Use 6" scale. Apply pressure 90Âº leg of wiper. Hold deflector against 1/16 shim.Same procedure across top of wiper. Then around remaining sides. Remove shim.

Specifications Dimension A

2.125 in

Specifications Dimension B

1.125 in

Specifications Materials

Cold Rolled Steel (CRS)

Specifications Material Thickness

16 gauge
