Industrial Chip Deflector - 5.625" x 1.375"
Industrial Chip Deflector - 5.625" x 1.375"
SKU:STA-ba97d4
Protect your machinery with our Industrial Chip Deflector - Expertly crafted from 16-gauge Cold Rolled Steel, customizable sizes available.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Industrial Chip Deflector - 5.625" x 1.375"
$39.99
Quantity: 1
Claim Your Seller Account
Industrial Chip Deflector - 5.625" x 1.375"
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Industrial Chip Deflector is expertly crafted from 16 gauge Cold Rolled Steel for durability and effective chip protection. Specifically designed to safeguard machine ways and way wipers from metal chips, this chip deflector offers unmatched strength and reliability. With customizable fabrication options and straightforward mounting instructions, it is ideal for hot chip applications and guarantees optimal performance. Available in various sizes and material options, including galvanized steel, this deflector ensures superior protection in industrial settings.
Product Specifications

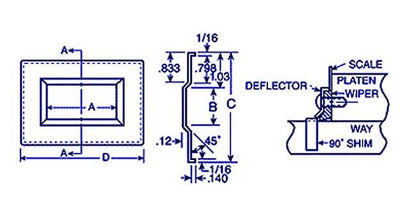

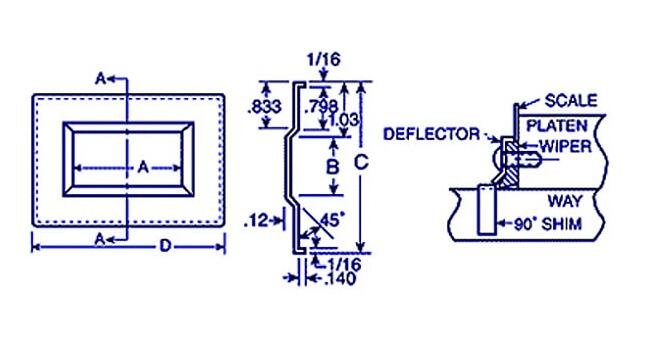

Mounting Instructions Mounting Instructions
Slide wiper into position.Place deflector over wiper.Insert all screws. Leave loose.Use 1/16 x 90º shim under lip of deflector.Use 6" scale. Apply pressure 90º leg of wiper. Hold deflector against 1/16 shim.Same procedure across top of wiper. Then around remaining sides. Remove shim.
Specifications Dimension A
5.625 in
Specifications Dimension B
1.375 in
Specifications Materials
Cold Rolled Steel (CRS)
Specifications Material Thickness
16 gauge
