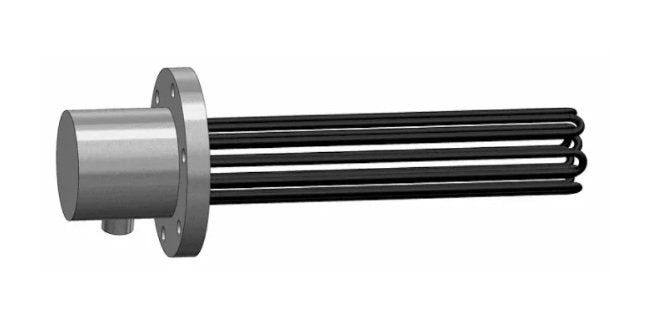

Industrial Circulation Heater - Stainless Steel
Industrial Circulation Heater - Stainless Steel
SKU:HEA-b4d168
Durable Industrial Circulation Heater with versatile NEMA housing options, corrosion-resistant sheath materials, and high-temperature rating.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Industrial Circulation Heater - Stainless Steel
$799.99
Quantity: 1
Claim Your Seller Account
Industrial Circulation Heater - Stainless Steel
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Industrial Circulation Heater is a robust heating solution designed for industrial applications. With options for NEMA 7 or NEMA 4 terminal housing, this heater offers versatility and safety. It features a variety of element sheath materials such as Incoloy® 800 and 316 Stainless Steel, ensuring corrosion resistance. The unit includes a wiring diagram and instruction manual in its terminal housing for easy maintenance and installation. The heater is crafted from SA106B Steel, rated to withstand high temperatures up to 750 ºF. Optional 300 lb. rated flanges and stainless steel vessel enhance durability and customization.
Product Specifications
Features
10" or larger units use 150 lb. rated flanges as standard inlet-outlet connections. NPT pipe threads (with optional flanges) are available for 3" to 8" Circulation Heaters for inlet-outlet connections.Options such as a capillary type thermostat and double-pole non-indicating bulb can be attached to the insulation jacket (in picture) or in the terminal box. Solid state temperature controllers and indicating thermostats are also available. Temperature protection can be provided by including a thermocouple with one of the elements.Threaded Mounting Lugs are welded to the steel casing to support the unit if necessary. Your structure can also be fitted with a custom support system.Different Sheath materials for the heating elements can be selected to meet any corrosion resistance standards. Smaller Circulation units with screw plug heaters, the element diameter is 0.315" or 0.475". The larger flanged heaters have an element diameter of 0.475".1" thick insulation rated to 750°F (399°C) surrounds the vessel to decrease heat loss. High temperature ceramic fiber insulation or extra insulation are also optional. Uninsulated vessels are also available. Vessel is made from SA53B or SA106B steel, rated to withstand temperatures up to 750ºF(399ºC). A drain plug is included at the bottom of the tank for cleaning and drainage purposes. Stainless Steel vessel is also available.Outer steel jacket is painted with rust and corrosion resistant paint. Jacket also protects and keeps insulation dry from the surrounding environment. Options include rain-tight seal and Stainless steel outer jacket.
Specifications Mounting Flange Rating
150 lb
Specifications National Pipe Thread Npt Size
3 to 8 in
Specifications Optional Element Sheath Materials
304 Stainless Steel | 321 Stainless Steel
Specifications Standard Element Sheath Materials
316 Stainless Steel | Copper | Incoloy® 800 | Low Carbon Steel
Specifications Terminal Housing
National Electrical Manufacturers Association (NEMA) 1
Specifications Vessel Material
SA106B Steel | SA53B
Specifications Vessel Temperature
750 ºF | 399 ºC
