Industrial Clevis Socket with Pin & Cotter Pin

Name: Industrial Clevis Socket with Pin & Cotter Pin
Brand: Lexco Cable Manufacturing
SKU: ARC-84ea88
Price: 45.99 USD
Availability: OutOfStock

SKU:ARC-84ea88

Durable Industrial Series clevis socket for 1/2" wire ropes with a high breaking strength of 26,600# - perfect for secure installations.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Industrial Series Clevis Socket with Pin and Cotter Pin is a versatile solution for wire rope installations, offering a strong hold and reliable performance. Crafted from self-colored steel, this clevis fitting is designed for 1/2" ropes with an EIPS breaking strength of 26,600#. Its precise dimensions ensure a secure fit while its durability guarantees long-term use. Ideal for architectural cable railings and other applications requiring robust fittings.

Product Specifications

Additional Information About Breaking Strength 0

Rope fittings are designed for linear applications only. Never subject Electroline rope fittings to angular loads. Follow rope manufacturersâ recommendations regarding the suitability of the rope on angled surfaces such as sheaves and pulleys.The strength of an assembly greatly depends on the type of rope used. When using Electroline terminations in an assembly, the rope is often the weakest component. Therefore, it is important to follow the rope manufacturers specifications regarding use, care, and suitability of the assembly. Electroline terminations should be inspected for deformation and unusual wear every time the rope is inspected.The rated assembly breaking strengths provided with Electroline wire rope part numbers in this catalog are typical for 6 x 19 IWRC (1 x 19 IWRC in smaller sizes) carbon steel ropes. Due to customer demand regarding dimensions, forged studs (GD 300 series), open body turnbuckles (XD series), fittings with hooks, and machined eyes (ID 200 series) are rated to Improved Plow Steel (IPS) standards. These fittings can be modified to Extra Improved Plow Steel (EIPS) standards if requested. All other carbon steel fittings conform to EIPS standards.Stainless steel typically yields at 85% of the assembly breaking strengths listed in this catalog and may not be suitable for high load applications or re-termination purposes.Machined fittings are at least 1.3 times stronger than the corresponding steel rope. Forged fittings, except studs, are 2.0 times stronger. Items specified as hot-dipped galvanized include a zinc, electro-plated sleeve.

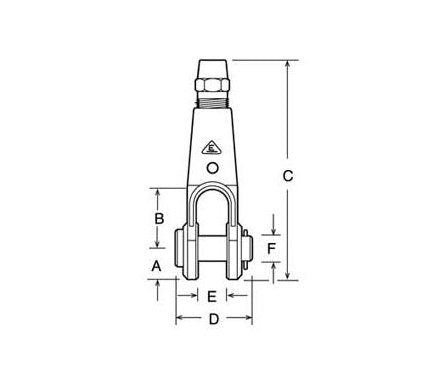

Specifications Dimensions F

1 "

Specifications Dim A

1-1/16 "

Specifications Dim B

2 "

Specifications Dim C

7-3/16 "

Specifications Dim D

2-19/32 "

Specifications Dim E

1 "

Specifications Eips Breaking Strength

26,600#

Specifications Material Finish

Self-Colored Steel

Specifications Rope Size

1/2 "

Specifications Series

Industrial

CAGE

0T9L4

NAICS

332510

PSC

4030

Industrial Clevis Socket with Pin & Cotter Pin
