Industrial Condenser Coils with Custom Design Options
Industrial Condenser Coils with Custom Design Options
SKU:CON-158796
Efficiently reject heat with our Industrial Condenser Coils. Custom-designed for durability and peak performance in harsh conditions.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Industrial Condenser Coils with Custom Design Options
$189.99
Quantity: 1
Claim Your Seller Account
Industrial Condenser Coils with Custom Design Options
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

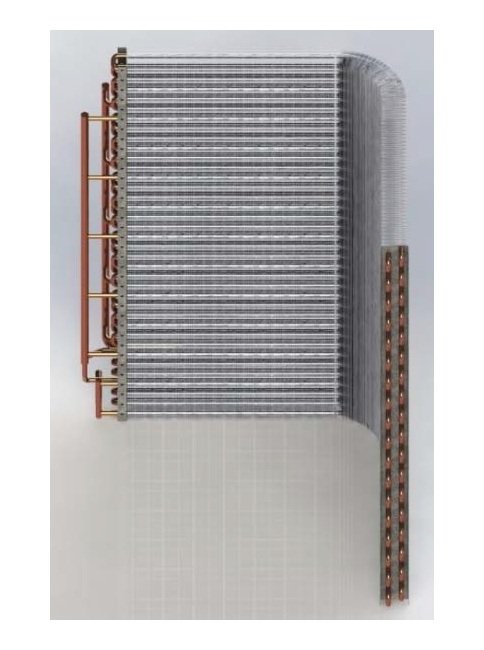

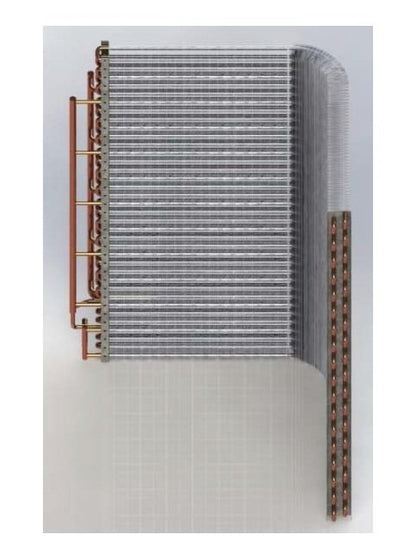

Our Industrial Condenser Coils, manufactured by Specialty Coils, efficiently handle the heat rejection process. Available in 3/8", 1/2", and 5/8" tube sizes with a range of fin patterns and circuiting options for optimal performance. Custom-designed for new installations or exact fit replacements. These coils, tested in accordance with ARI 410 and UL certified, are built to withstand harsh outdoor conditions. With options like InfiniGARD protective coating, they ensure durability in corrosive environments.
Product Specifications
Additional Information
Each condenser coil is manufactured to exacting industry standards with a variety of material options and are specifically designed for the refrigerant required. Our condenser coils are manufactured to withstand the harsh outdoor environments they are subjected to. We also offer InfiniGARD protective coating which can lengthen the coils life span by protecting it from harsh and corrosive environments.
Casing Specification Aluminum Hii Casing Thickness
0.050 gauge | 0.063 gauge | 0.080 gauge
Casing Specification Copper C12200 Casing Thickness
0.063 gauge
Casing Specification Galvanized G90 Casing Thickness
16 gauge | 18 gauge | 20 gauge
Casing Specification Stainless Steel 304 Casing Thickness
18 gauge

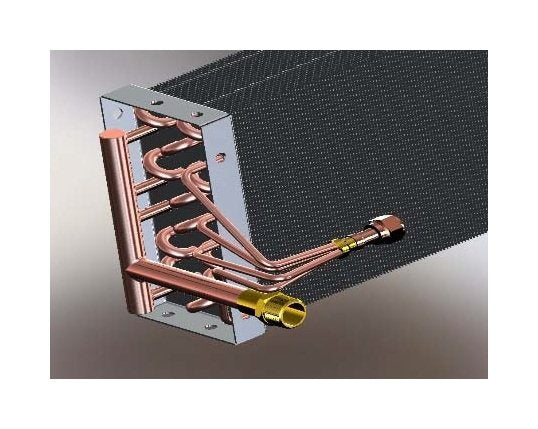

Connections
Multiple connection sizes and materials are available in Sweat, MPT, and FPT.
Fin Specification Aluminum Fin Options For 12 Inch In Tube Outer
0.0055 in | 0.0075 in | 0.0100 in
Fin Specification Aluminum Fin Options For 38 Inch In Tube Outer
0.0045 in | 0.0055 in | 0.0075 in | 0.0100 in
Fin Specification Aluminum Fin Options For 58 Inch In Tube Outer
0.0055 in | 0.0075 in | 0.0100 in
Fin Specification Copper Fin Options For 12 Inch In Tube Outer D
0.0050 in | 0.0100 in
Fin Specification Copper Fin Options For 38 Inch In Tube Outer D
0.0050 in
Fin Specification Copper Fin Options For 58 Inch In Tube Outer D
0.0050 in | 0.0100 in
Fin Specification Fins Per Inch Fpi For 12 Inch In Tube Outer Di
6 to 18 FPI
Fin Specification Fins Per Inch Fpi For 38 Inch In Tube Outer Di
8 to 20 FPI
Fin Specification Fins Per Inch Fpi For 58 Inch In Tube Outer Di
4 to 14 FPI
Fin Specification Note

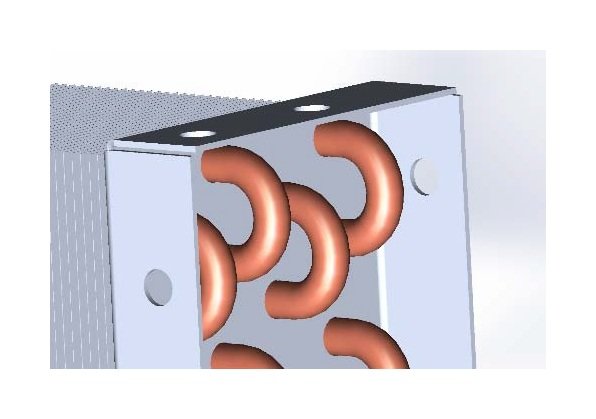

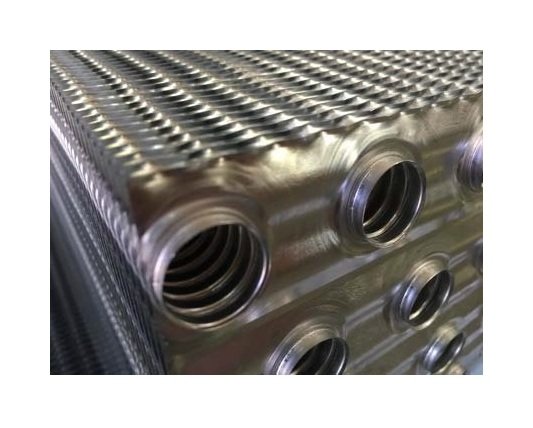

All fins are die formed aluminum or copper with collared tube holes
Performance
Calculations are based on tests run in accordance with ARI 410. | Underwriters Laboratories (UL) Certification.
Specifications Condenser Coil Rows
1 to 12
Specifications Tube Outer Diameter
3/8 in | 1/2 in | 5/8 in
Tube Specification Copper Tube Wall Thickness For 12 Inch In Tub
0.016 in | 0.025 in
Tube Specification Copper Tube Wall Thickness For 38 Inch In Tub
0.028 in
Tube Specification Copper Tube Wall Thickness For 58 Inch In Tub
0.020 in | 0.035 in
Tube Specification Tube Patterns For 12 Inch In Tube Outer Diame
1.25 x 1.08 in
Tube Specification Tube Patterns For 38 Inch In Tube Outer Diame
1 x 0.866 in
Tube Specification Tube Patterns For 58 Inch In Tube Outer Diame
1.5 x 1.299 in
