Industrial Control Transformers
Industrial Control Transformers
SKU:POW-efdf7b
Precision-engineered Industrial Control Transformers for electronic, electromagnetic, and electrical applications, with multiple voltage options and versatile mounting features.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Industrial Control Transformers
$69.99
Quantity: 1
Claim Your Seller Account
Industrial Control Transformers
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

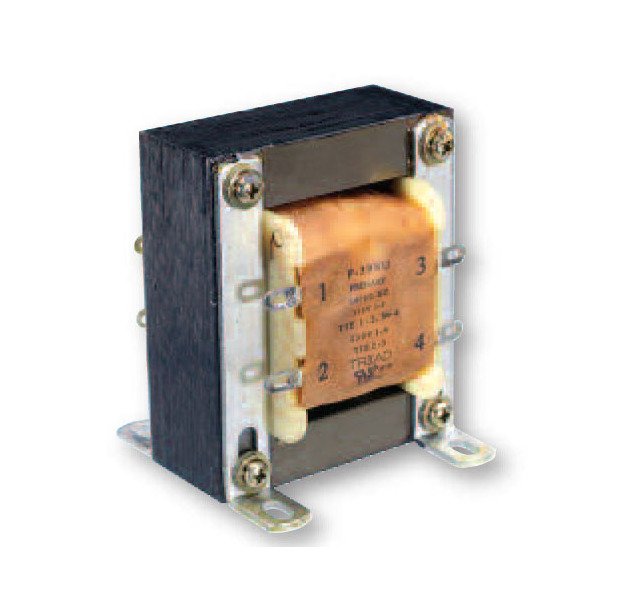

The Industrial Control Transformers from our Chassis Mount Power Control Transformers line are meticulously designed to deliver precise secondary voltages crucial for electronic, electromagnetic, and electrical control applications. With primary AC voltage options of 115V or 230V, and secondary voltages of 24.0V at 8.0A or 12.0V at 16.0A, these transformers boast a robust electrical rating of 192 V·A. Featuring a compact case type 'U', solder lug connections, and versatile mounting options, these transformers are ideal for use with relays, solenoids, motors, pumps, and various other industrial equipment.
Product Specifications
Applications Applications
RelaysSolenoidsSmall MotorsSpeed ChangersPumpsHeating ElementsControl Valves for Fluids and GasesFans and BlowersElectronic TubesAutomatic Assembly EquipmentRecording DevicesElevatorsDoor OpenersLow Voltage Lamps
Specifications Case Type
U
Specifications Connections
Lugs

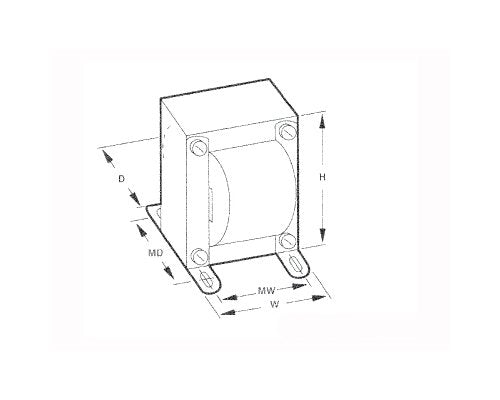

Specifications Depth D
3 9/16 in
Specifications Electrical Rating
192 V·A
Specifications Height H
4 3/16 in
Specifications Mounting Depth
3 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Width
2 3/4 in
Specifications Primary Alternating Current Ac Voltage
115 V | 230 V
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Secondary Voltage In Parallel Ac
12.0 V at 16.0 A
Specifications Secondary Voltage In Series Ac
24.0 V at 8.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
8.00 lb
Specifications Width W
3 7/16 in
Technical Notes Technical Notes

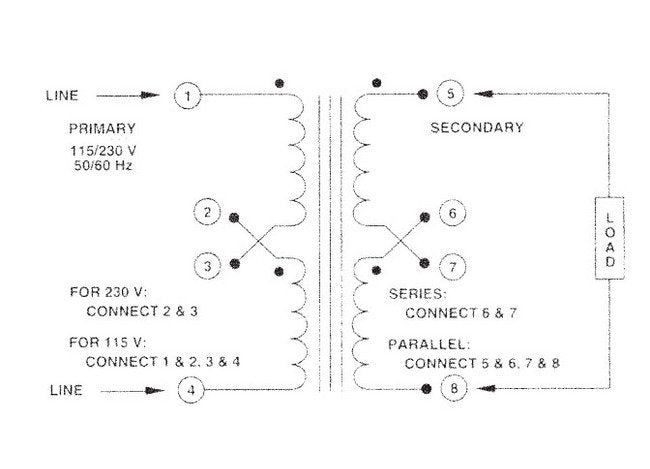

Hi-pot tested at 1,500 VRMS.Secondaries may be connected in series or parallel for expanded voltage and current ranges. See Control Transformer Connections diagram.Transformer termination is solder lug.
