Industrial Control Transformers - Chassis Mount
Industrial Control Transformers - Chassis Mount
SKU:POW-928a07
Power your control applications reliably with Industrial Control Transformers - Chassis Mount. Hi-pot tested, versatile connections, and secure solder lug termination.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Industrial Control Transformers - Chassis Mount
$69.99
Quantity: 1
Claim Your Seller Account
Industrial Control Transformers - Chassis Mount
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

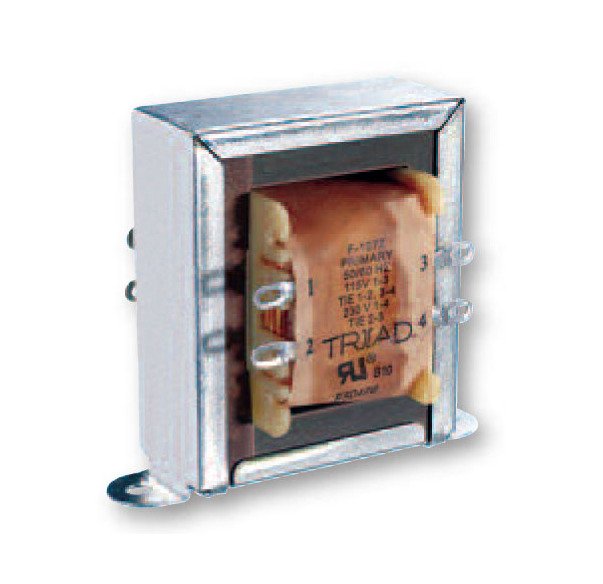

The Industrial Control Transformers - Chassis Mount are essential components for various electronic, electromagnetic, and electrical control applications. With primary AC voltage options of 115V or 230V and secondary voltages of 24.0V at 2.0A or 12.0V at 4.0A, these transformers are designed for use with relays, solenoids, small motors, pumps, and more. Hi-pot tested at 1,500 VRMS, they offer versatility with the ability to connect secondary voltages in series or parallel. Solder lug termination ensures secure connections, and the Z case type with lugs for connections makes installation efficient and reliable.
Product Specifications
Applications Applications
RelaysSolenoidsSmall MotorsSpeed ChangersPumpsHeating ElementsControl Valves for Fluids and GasesFans and BlowersElectronic TubesAutomatic Assembly EquipmentRecording DevicesElevatorsDoor OpenersLow Voltage Lamps
Specifications Case Type
Z
Specifications Connections
Lugs

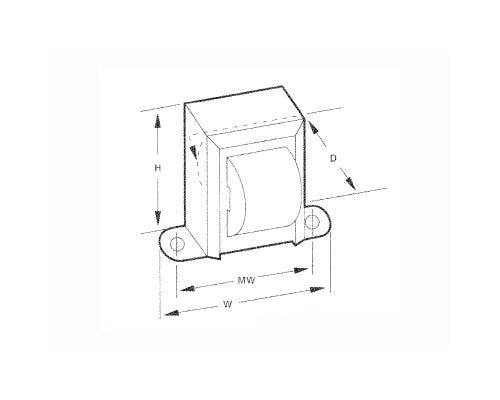

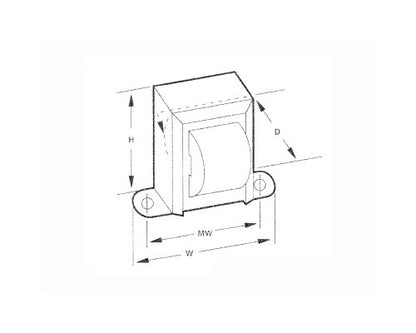

Specifications Depth D
2 3/8 in
Specifications Electrical Rating
48 V·A
Specifications Height H
3 1/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
3 1/8 in
Specifications Primary Alternating Current Ac Voltage
115 V | 230 V
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Secondary Voltage In Parallel Ac
12.0 V at 4.0 A
Specifications Secondary Voltage In Series Ac
24.0 V at 2.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
2.50 lb
Specifications Width W
3 5/8 in
Technical Notes Technical Notes

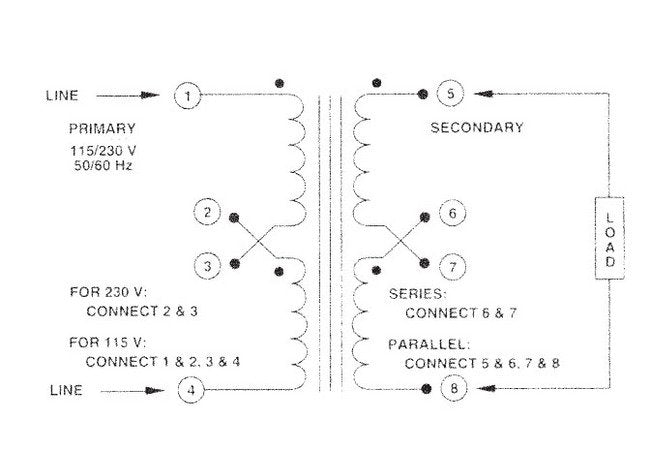

Hi-pot tested at 1,500 VRMS.Secondaries may be connected in series or parallel for expanded voltage and current ranges. See Control Transformer Connections diagram.Transformer termination is solder lug.
