Industrial Control Transformers for Power Systems
Industrial Control Transformers for Power Systems
SKU:POW-fc71ff
Enhance your power control systems with reliable Chassis Mount Transformers for various applications. Solder lug terminations, hi-pot tested for safety.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Industrial Control Transformers for Power Systems
$69.99
Quantity: 1
Claim Your Seller Account
Industrial Control Transformers for Power Systems
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

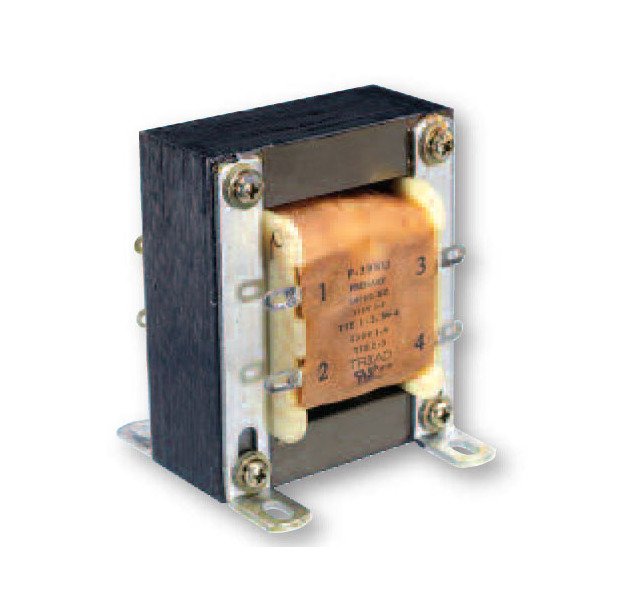

Enhance your electronic, electromagnetic, and electrical control systems with our Chassis Mount Power Control Transformers. Designed for reliability and efficiency, these transformers offer a primary AC voltage of 115V or 230V, a secondary voltage of 24.0V at 4.0A in series or 12.0V at 8.0A in parallel. With a sturdy U-shaped case, hi-pot tested insulation, and versatile connections, they cater to a wide range of applications including relays, solenoids, motors, pumps, and more. Solder lug terminations ensure secure connections, while compliance with federal procurement standards and industry certifications makes them suitable for institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Applications
RelaysSolenoidsSmall MotorsSpeed ChangersPumpsHeating ElementsControl Valves for Fluids and GasesFans and BlowersElectronic TubesAutomatic Assembly EquipmentRecording DevicesElevatorsDoor OpenersLow Voltage Lamps
Specifications Case Type
U
Specifications Connections
Lugs

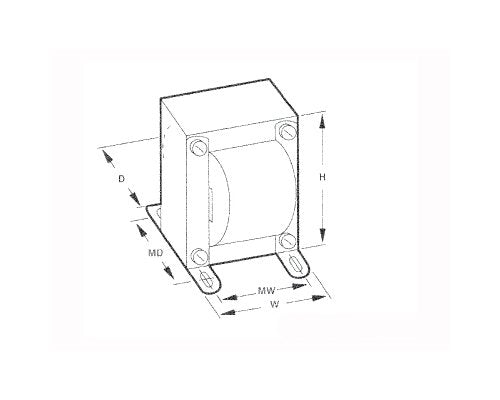

Specifications Depth D
3 3/16 in
Specifications Electrical Rating
96 V·A
Specifications Height H
3 13/32 in
Specifications Mounting Depth
2 1/4 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Width
2 1/4 in
Specifications Primary Alternating Current Ac Voltage
115 V | 230 V
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Secondary Voltage In Parallel Ac
12.0 V at 8.0 A
Specifications Secondary Voltage In Series Ac
24.0 V at 4.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
4.3 lb
Specifications Width W
2 13/16 in
Technical Notes Technical Notes

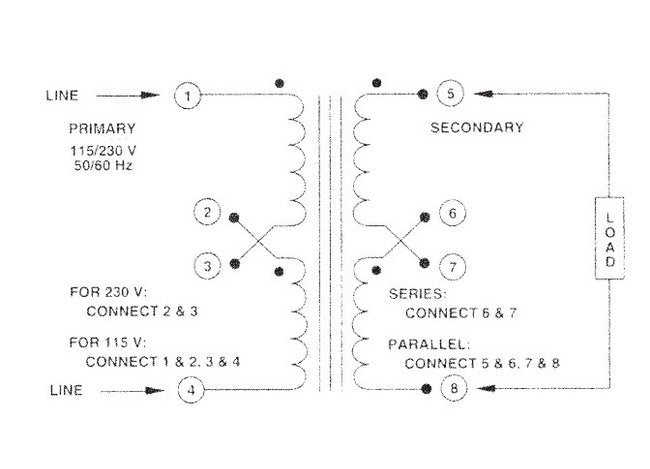

Hi-pot tested at 1,500 VRMS.Secondaries may be connected in series or parallel for expanded voltage and current ranges. See Control Transformer Connections diagram.Transformer termination is solder lug.
