Industrial Control Transformers with Center Tap
Industrial Control Transformers with Center Tap
SKU:POW-a277ae
Precision control transformer for diverse industrial applications, providing reliable secondary voltages and versatile connectivity options.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Industrial Control Transformers with Center Tap
$79.99
Quantity: 1
Claim Your Seller Account
Industrial Control Transformers with Center Tap
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

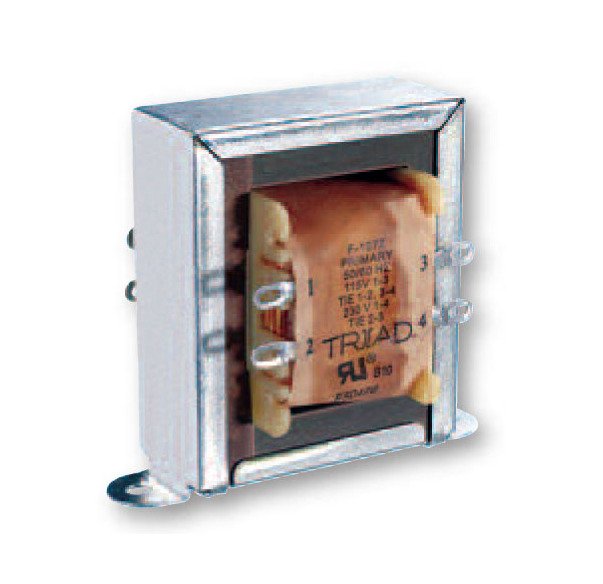

Delivering precise secondary voltages essential for electronic and electrical control applications. This Chassis Mount Power Control Transformer features dual primary voltage options, center tap contact type, and flexible connections for varied industrial needs. With a sturdy Z case type, flexible mounting options, and hi-pot testing up to 1,500 VRMS, this transformer ensures reliability and enhanced operational efficiency across a range of equipment from relays to door openers.
Product Specifications
Applications Applications
RelaysSolenoidsSmall MotorsSpeed ChangersPumpsHeating ElementsControl Valves for Fluids and GasesFans and BlowersElectronic TubesAutomatic Assembly EquipmentRecording DevicesElevatorsDoor OpenersLow Voltage Lamps
Specifications Case Type
Z
Specifications Connections
Lugs

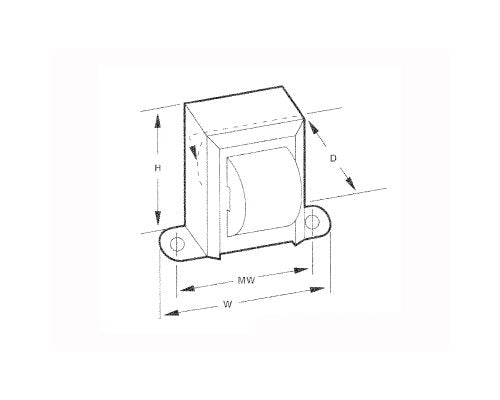

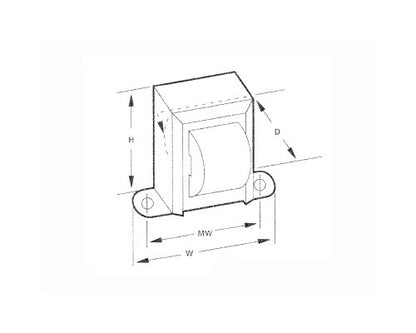

Specifications Depth D
2 in
Specifications Electrical Rating
24 V·A
Specifications Height H
2 3/4 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 13/16 in
Specifications Primary Alternating Current Ac Voltage
115 V | 230 V
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Secondary Voltage In Parallel Ac
24.0 V at 1.0 A
Specifications Secondary Voltage In Series Ac
48.0 V at 0.50 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.10 lb
Specifications Width W
3 1/8 in
Technical Notes Technical Notes

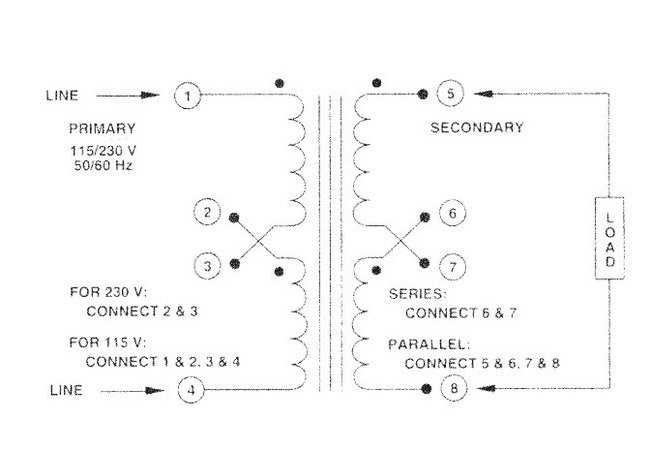

Hi-pot tested at 1,500 VRMS.Secondaries may be connected in series or parallel for expanded voltage and current ranges. See Control Transformer Connections diagram.Transformer termination is solder lug.
