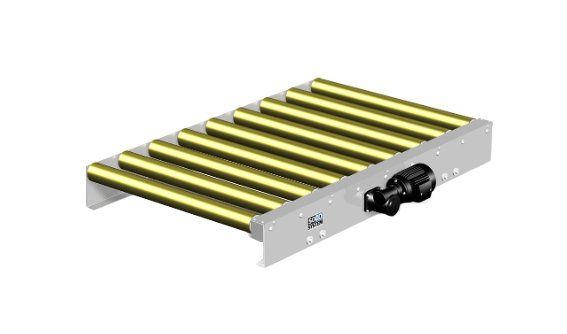

Industrial Driven Pallet Roller Conveyor - 1370x750mm with Gear Motor
Industrial Driven Pallet Roller Conveyor - 1370x750mm with Gear Motor
SKU:PAC-6ff4e9
High-capacity driven pallet roller conveyor for efficient material handling.
Regular price
$2,999.00
Regular price
Sale price
$2,999.00
Unit price
per
Initiate Order
Industrial Driven Pallet Roller Conveyor - 1370x750mm with Gear Motor
$2,999.00
Quantity: 1
Claim Your Seller Account
Industrial Driven Pallet Roller Conveyor - 1370x750mm with Gear Motor
$2,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Industrial Driven Pallet Roller Conveyor features a robust design with electro galvanized steel construction. With a payload capacity of up to 1,500 kg per pallet and motor unit, this conveyor boasts a smooth operation at a speed of 11.4 m/min. Its chain drive system, side-mounted gear motor, and 89mm roller pitch ensure efficient material handling. Ideal for packaging facilities and warehouses requiring reliable and silent conveyance solutions.
Product Specifications
Accessories Accessories
Cross Bars for Supports | Supports for External Mounting | Supports for Internal Mounting
Dimensions Length
750 mm
Dimensions Width
1370 mm
Features Features
All sections are supplied with coupling fittings.Silent - minimal friction.Smooth design - no sharp edges.Easy to relocate and extend.
Note Note
Subject to alteration.
Specifications Axle Diameter
17 mm
Specifications Bearings
6203 - 2rs
Specifications Chain Cover
Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.
Specifications Chain Drive
Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.
Specifications Conveying Rollers Diameter
80 mm
Specifications Frames
Cold-bend angle profiles bolted to C-profile cross bars with supports.
Specifications Gear Motor
0.37 kW
Specifications Pallet Handling Surface Treatment
Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.
Specifications Payload
For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.
Specifications Roller Conveyor
Electro galvanized steel tubes
Specifications Roller Fittings
Rollers are suspended between side frames by means of M10 axle.
Specifications Roller Pitch
89 mm
Specifications Speed
11.4 m/min
Specifications Standard Total Height From Floor To Top Of Roller
190 mm
